Two-way inlet pump unit PD500-450A/6
2 years warranty
Оn electric motors and pump units.
The warranty on generators is from 1 year.
Fast shipping
In any way convenient for you
25 years of experience
They provide a comprehensive solution to the energy generation, engineering and driving force needs of your enterprise.
Characteristics
| Type of pump unit | Two-way inlet pump unit |
| Appointment | pumping of large volumes of liquids of various consistencies, including pure water, technical water, liquids with a low content of impurities. Provides stable supply and uniform pressure for use at industrial facilities, in the water supply of cities, for various hydrotechnical structures, etc. |
| Voltage, V | 380 |
| Frequency, Hz | 50 |
| Max Head, m | 19 |
| Max Productivity, m3/h | 2170 |
| Engine power, kW | 160 |
| Rotation speed, RPM | 985 |
| Diameter of the impeller, mm | 450 |
| Pipe diameter, mm | DNs500 DNd400 |
| Case material | Cast Iron |
| Impeller material | Cast Iron |
PD500-450A/6 Double-Suction Pump Unit: Reliability and Performance for Large-Scale Tasks
The PD500-450A/6 pump unit is a powerful double-suction pump designed for the efficient pumping of significant volumes of various liquids. It's capable of handling clean water, technical water, and liquids with a low content of impurities. This unit ensures stable flow and uniform pressure, making it an ideal choice for industrial facilities, municipal water supply systems, various hydraulic structures, and other areas where high efficiency is required.
Key Features:
Efficient Pumping of Large Volumes: Thanks to its double-suction inlet, the PD500-450A/6 pump unit delivers high performance, reaching up to 2170 m³/hour.
Reliability and Durability: High-quality cast iron, used for the casing and impeller, guarantees a long service life and resistance to wear.
Compatibility with Electrical Networks: The pump unit is equipped with a motor that operates at 380V and 50Hz, making it compatible with most standard electrical networks in Germany.
Optimal Operating Parameters: A rotation speed of 985 rpm allows the pump to work efficiently under various loads, providing the necessary head (up to 19 m) and capacity.
Usage:
This pump unit is ideally suited for use in conditions requiring the pumping of large volumes of various consistency liquids. It ensures stable flow and uniform pressure, allowing for effective application in sectors such as:
Industrial Facilities: For various manufacturing processes, cooling systems, fire suppression, and more.
Municipal Water Supply Systems: Ensuring uninterrupted water supply and maintaining the required pressure in networks.
Hydraulic Structures: Drainage works, irrigation, ensuring the functioning of water features.
Technical Specifications:
Voltage: 380V
Frequency: 50Hz
Head: 19 m
Capacity: 2170 m³/hour
Rotation Speed: 985 rpm
Impeller Diameter: 450 mm
Nozzle Diameter: Inlet DNs 500 mm; Outlet DNd 400 mm
Casing Material: Cast Iron
Impeller Material: Cast Iron
Replace your old D2000-21 pump with the modern PD500-450A/6: investment payback from one year due to electricity savings, and then only profit.

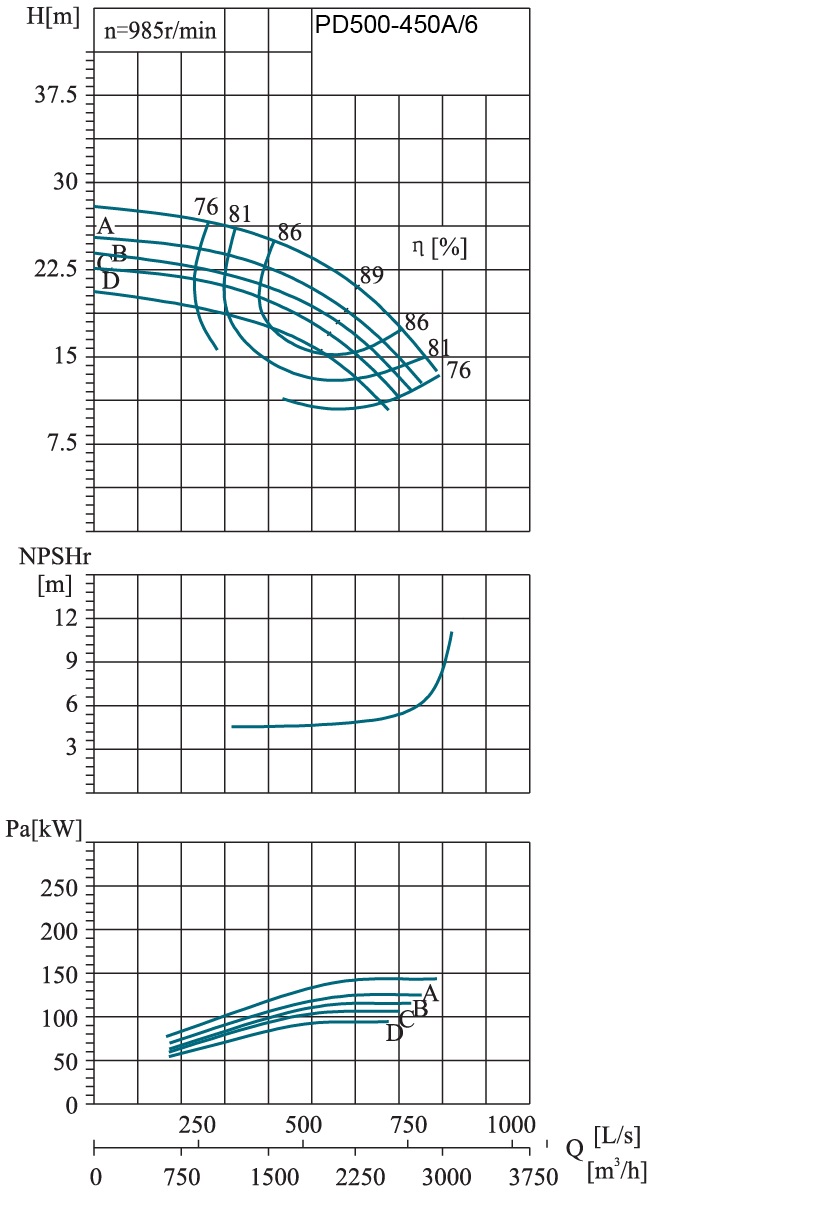

Performance Graph:
