Two-way inlet pump unit PD150-400(I)C/4
2 years warranty
Оn electric motors and pump units.
The warranty on generators is from 1 year.
Fast shipping
In any way convenient for you
25 years of experience
They provide a comprehensive solution to the energy generation, engineering and driving force needs of your enterprise.
Characteristics
| Type of pump unit | Two-way inlet pump unit |
| Appointment | pumping of large volumes of liquids of various consistencies, including pure water, technical water, liquids with a low content of impurities. Provides stable supply and uniform pressure for use at industrial facilities, in the water supply of cities, for various hydrotechnical structures, etc. |
| Voltage, V | 380 |
| Frequency, Hz | 50 |
| Max Head, m | 30,8 |
| Max Productivity, m3/h | 142 |
| Engine power, kW | 22 |
| Rotation speed, RPM | 1480 |
| Diameter of the impeller, mm | 400 |
| Pipe diameter, mm | DNs150 DNd100 |
| Case material | Cast Iron |
| Impeller material | Cast Iron |
PD150-400(I)C/4 Double-Suction Pump Unit: A Reliable Solution for High Volumes
The PD150-400(I)C/4 pump unit is efficient and reliable equipment designed for pumping significant volumes of various liquids. It's ideal for use with clean water, technical water, and liquids with a low content of impurities. This pump unit ensures stable flow and uniform pressure, making it an optimal choice for industrial facilities, municipal water supply systems, various hydraulic structures, and other demanding applications.
Features:
Efficient Pumping: The PD150-400(I)C/4 double-suction pump unit guarantees high efficiency when pumping liquids of various consistencies.
High Performance: Its double-suction inlet boosts performance, saving time and effort during operation, with a capacity of up to 142 m³/hour.
Durability and Reliability: The casing and impeller are made from high-quality cast iron, ensuring a long service life and high resistance to wear.
Adaptability: The pump unit operates at a rotation speed of 1480 rpm, allowing its performance to be adjusted for various needs, providing optimal metrics, including a head of up to 30.8 m.
Areas of Use:
This pump unit is perfectly suited for applications requiring the pumping of large volumes of various consistency liquids. It can be effectively used in:
Industrial facilities: For continuous supply of large liquid volumes for manufacturing processes, cooling systems, and more.
Municipal water supply systems: Ensuring stable pressure and high capacity for public utilities.
Hydraulic structures: Such as drainage systems or irrigation, where stable liquid delivery and uniform pressure are critical.
Technical Specifications:
Pump Unit Type: Double-suction pump unit
Voltage: 380 V
Frequency: 50 Hz
Head: 30.8 m
Capacity: 142 m³/hour
Rotation Speed: 1480 rpm
Impeller Diameter: 400 mm
Nozzle Diameter: Inlet DNs 150 mm; Outlet DNd 100 mm
Casing Material: Cast Iron
Impeller Material: Cast Iron
The PD150-400(I)C/4 pump unit will be a reliable partner for your large-scale projects, ensuring high efficiency and durability.
Replace your old 1D250-125 pump with the modern PD150-400(I)C/4: the investment pays back in just one year through electricity savings, bringing continuous profit thereafter.
If you have any questions or would like to learn more, feel free to contact us!

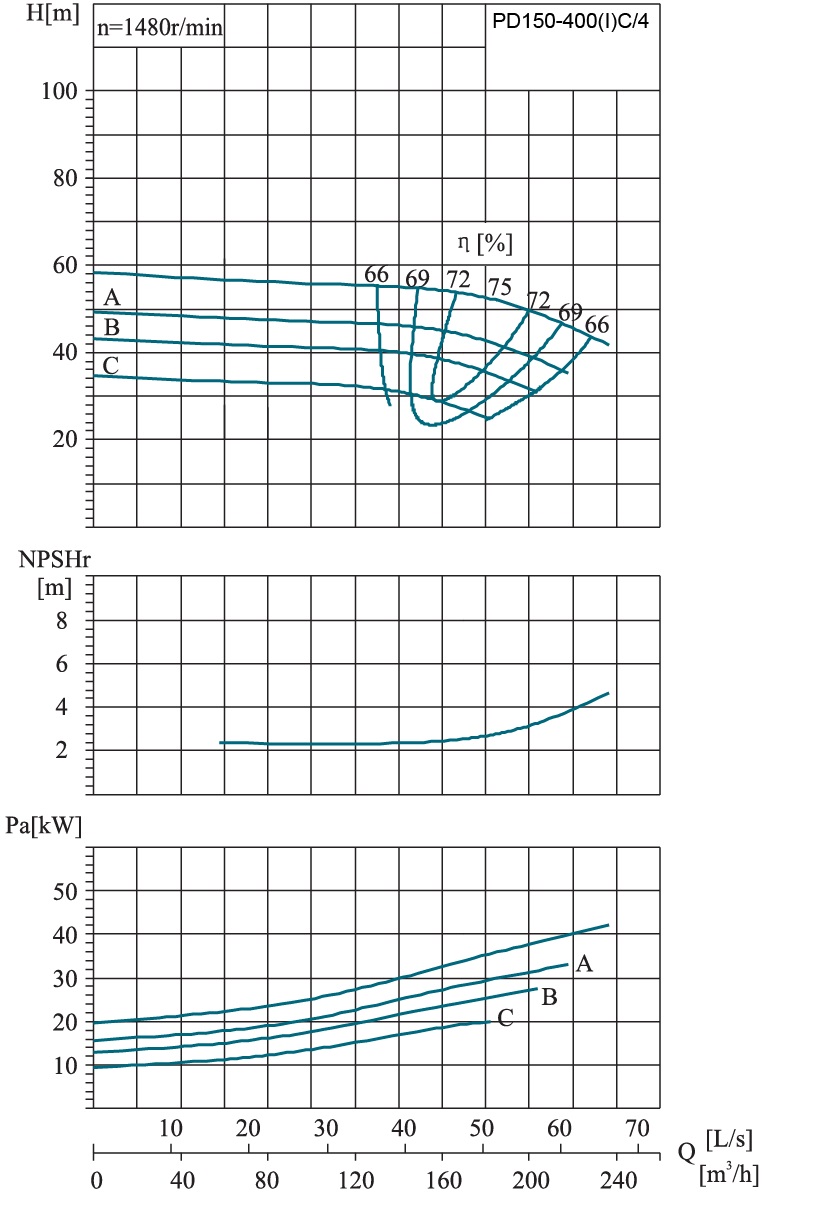

Performance Graph:
