Two-way inlet pump unit PD250-740(I)/4
2 years warranty
Оn electric motors and pump units.
The warranty on generators is from 1 year.
Fast shipping
In any way convenient for you
25 years of experience
They provide a comprehensive solution to the energy generation, engineering and driving force needs of your enterprise.
Characteristics
| Type of pump unit | Two-way inlet pump unit |
| Appointment | pumping of large volumes of liquids of various consistencies, including pure water, technical water, liquids with a low content of impurities. Provides stable supply and uniform pressure for use at industrial facilities, in the water supply of cities, for various hydrotechnical structures, etc. |
| Voltage, V | 380 |
| Frequency, Hz | 50 |
| Max Head, m | 220 |
| Max Productivity, m3/h | 901 |
| Engine power, kW | 710 |
| Rotation speed, RPM | 1480 |
| Diameter of the impeller, mm | 740 |
| Pipe diameter, mm | DNs250 DNd200 |
| Case material | Cast Iron |
| Impeller material | Cast Iron |
PD250-740(I)/4 Double-Suction Pump Unit: Reliability and Performance for Large-Scale Tasks
The PD250-740(I)/4 pump unit is a powerful double-suction pump designed for the efficient pumping of significant volumes of various liquids. It's capable of handling clean water, technical water, and liquids with a low content of impurities. This unit ensures stable flow and uniform pressure, making it an ideal choice for industrial facilities, municipal water supply systems, various hydraulic structures, and other areas where high efficiency is required.
Features- Efficient Pumping of Large Volumes: Thanks to its double-suction inlet, the PD250-740(I)/4 pump unit delivers high performance, reaching up to 901 m³/hour.
- Reliability and Durability: High-quality cast iron, used for the casing and impeller, guarantees a long service life and resistance to wear.
- Compatibility with Electrical Networks: The pump unit is equipped with a motor that operates at 380V and 50Hz, making it compatible with most standard electrical networks.
- Optimal Operating Parameters: A rotation speed of 1480 rpm allows the pump to work efficiently under various loads, providing the necessary head (up to 220 m) and capacity.
This pump unit is ideally suited for use in conditions requiring the pumping of large volumes of various consistency liquids. It ensures stable flow and uniform pressure, allowing for effective application in sectors such as:
- Industrial Facilities: For various manufacturing processes, cooling systems, fire suppression, and more.
- Municipal Water Supply Systems: Ensuring uninterrupted water supply and maintaining the required pressure in networks.
- Hydraulic Structures: Drainage works, irrigation, ensuring the functioning of water features.
- Voltage: 380V
- Frequency: 50Hz
- Head: 220 m
- Capacity: 901 m³/hour
- Rotation Speed: 1480 rpm
- Impeller Diameter: 740 mm
- Nozzle Diameter: Inlet DNs 250 mm; Outlet DNd 200 mm
- Casing Material: Cast Iron
- Impeller Material: Cast Iron
Replace your old pump with the modern PD250-740(I)/4: the investment pays back in just one year through electricity savings, bringing continuous profit thereafter.

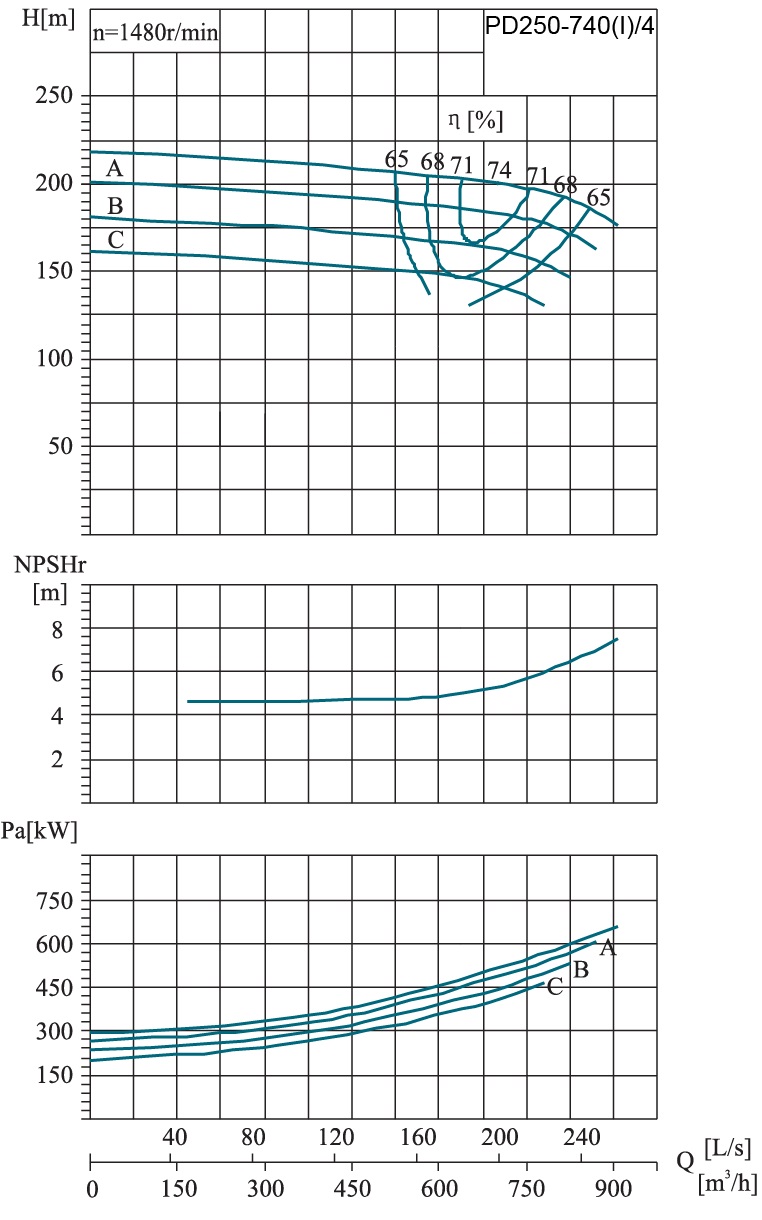

Performance Graph:
