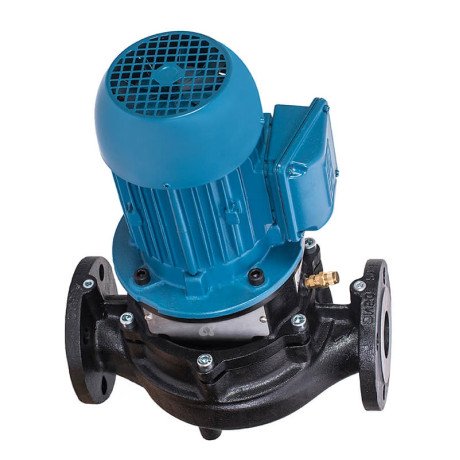

Circulation pump EKV-ILC 40-240-2 in-line
2 years warranty
Оn electric motors and pump units.
The warranty on generators is from 1 year.
Fast shipping
In any way convenient for you
25 years of experience
They provide a comprehensive solution to the energy generation, engineering and driving force needs of your enterprise.
Characteristics
| Housing material | Cast iron |
| Impeller | gray cast iron |
| Shaft | Stainless steel |
| Bearings | AQ1EGG |
| Maximum Capacity, m3/h | 28,7 |
| Maximum head, m | 23,7 |
| Pressure flange diameter | 40 |
| Montage dovzhina, m | 340 |
| Insulation class | F |
| Protection | IP55 |
| Voltage, V | 400 |
| Frequency, Hz | 50 |
| Rotation speed, rpm | 2870 |
| Motor energy efficiency class | ІЕ3 |
| Engine power, kW | 2.2 |
EKV-ILC - In-line circulation pump for heating and water supply
In-line pumps with 2-pole motors are compact monoblock centrifugal pumps with a single impeller, which are easy to install thanks to the coaxial arrangement of the nozzles of the same diameter. We offer models with standard and extended motor shafts.
