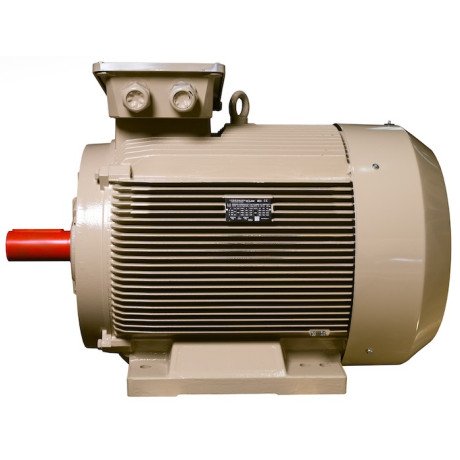

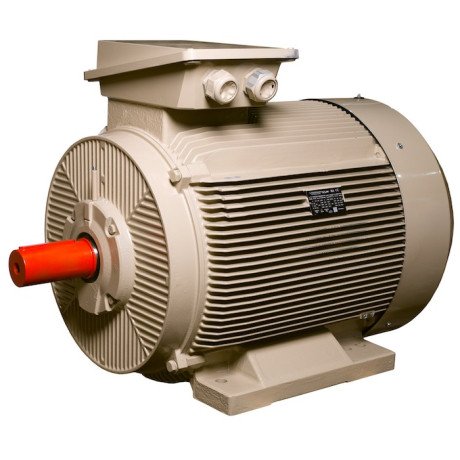

Electric motor IE3 energy-efficient LEDERMANN L3E G 355LC6 400 kW 1000 rpm B3
Price
General info
Оn electric motors and pump units.
The warranty on generators is from 1 year.
In any way convenient for you
They provide a comprehensive solution to the energy generation, engineering and driving force needs of your enterprise.
Characteristics
| Electric Motor type | energy efficient |
| Power, kW | 400 |
| Phase | 3 |
| Voltage, V | 400 |
| Number of poles | 6 |
| Shaft diameter, mm | 100 |
| Rotation speed, rpm | 1000 |
| Mounting version | B3 |
| Efficiency of load 100% | 95,8 |
| Power factor | 0,8 |
| Efficiency of load 75% | 95,8 |
| Cooling | IC411 |
| Efficiency of load 50% | 95,8 |
| Protection class | IP55 |
| Starting current coefficient | 6,8 |
| Coefficient of starting moment | 2,3 |
| Torque ratio | 2,3 |
| Current frequency, Hz | 50 |
| Weight, Kg | 2500 |
| Country of origin | Germany |
Description
The IE3 energy-efficient motor LEDERMANN L3E G 355LC6 is a powerful and reliable motor from a German manufacturer. It has a wide range of applications, from industrial installations to energy-saving systems. Thanks to its technical characteristics and reliability, it is the perfect choice for any demanding working conditions.
Features
- Mounting design B3 - this type of mounting allows for easy installation of the motor in the desired location and provides convenient access for maintenance and repair.
- Reliability - the motor is made of high-quality materials and has high resistance to loads and the negative effects of the external environment.
- Power factor 0.8 - the high power factor value allows for efficient use of electricity and ensures stable motor operation.
- Protection class IP55 - this protection class guarantees that the motor is protected from dust and water, making it reliable in high humidity and dirty conditions.
Energy-efficient - the IE3 motor has a high energy efficiency coefficient, which allows for reduced electricity consumption and operating costs.
Usage
The IE3 energy-efficient motor LEDERMANN L3E G 355LC6 is ideal for use in industrial installations, ventilation systems, pump units, and other systems where a reliable and powerful motor with efficient electricity consumption is required. Thanks to its technical characteristics, it can also be used in complex automation and control systems.
Technical Specifications
- Power, kW: 400
- Voltage, V: 400
- Phase: 3
- Number of poles: 6
- Shaft diameter, mm: 100
- Rotation speed, rpm: 1000
- Mounting design: B3
- Power factor: 0.8
- Protection class: IP55
- Current frequency, Hz: 50
- Weight, kg: 2500
- Country of origin: Germany
- Load efficiency 75%: 95.8
- Cooling: IC411
- Starting current coefficient: 6.8
- Starting torque coefficient: 2.3
- Torque coefficient: 2.3
- Load efficiency 100%: 95.8
- Load efficiency 50%: 95.8
Motor type: energy-efficient
