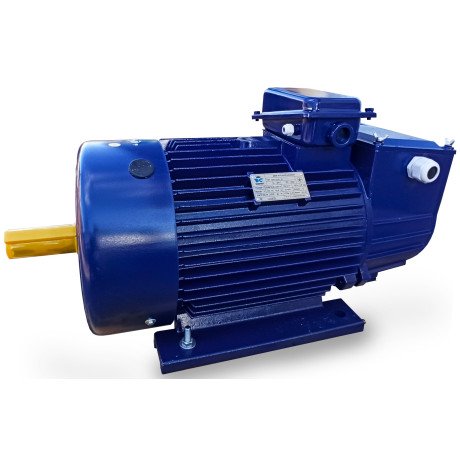

МТН MTF 412-8 crane electric motor 22 KW 750 rpm with phase rotor ІМ 1003
Price
General info
Оn electric motors and pump units.
The warranty on generators is from 1 year.
In any way convenient for you
They provide a comprehensive solution to the energy generation, engineering and driving force needs of your enterprise.
Characteristics
| Electric Motor type | сrane and metallurgical |
| Power, kW | 22 |
| Phase | 3 |
| Voltage, V | 380 (220, 660) |
| Rotation speed, rpm | 750 |
| Mounting version | ІМ 1003 |
| Power factor | 0,79 |
| Rated stator current at 220/380 V, A | 84.3/48.7 |
| Rated rotor current, A | 59 |
| Protection class | IP54 |
| Ratio max. force torque to nominal | 2,8 |
| Rotor voltage, V | 242 |
| Current frequency, Hz | 50 |
| Efficiency, % | 86 |
| Weight, Kg | 365 |
| Country of origin | Ukraine |
Description
The MTF 412-8 crane motor is a powerful and reliable device designed specifically for use in crane systems and metallurgical processes. This motor ensures efficient operation and high productivity.
Features
- Power: 22 kW
- Voltage: 380 V (220, 660)
- Efficiency: 86%
- Phase: 3
- Rotation Speed: 750 rpm
- Mounting Design: IM 1003
- Power Factor: 0.79
- Protection Class: IP54
- Max. Torque to Nominal Force Ratio: 2.8
- Current Frequency: 50 Hz
- Weight: 365 kg
- Country of Origin: Ukraine
- Stator Nominal Current at 220/380 V: 84.3/48.7 A
- Rotor Nominal Current: 59 A
- Rotor Voltage: 242 V
Motor Type: Crane-Metallurgical
Usage
The MTF 412-8 crane motor is ideal for installation on cranes and in metallurgical processes. It ensures reliable operation of devices that require high power and precision. This motor can work in various conditions, providing efficient operation for a long time.
Technical Specifications
| Crane-Metallurgical |
| 22 |
| 380 (220, 660) |
| 86 |
| 3 |
| 750 |
| IM 1003 |
| 0.79 |
| IP54 |
| 2.8 |
| 50 |
| 365 |
| Ukraine |
| 84.3/48.7 |
| 59 |
| 242 |
