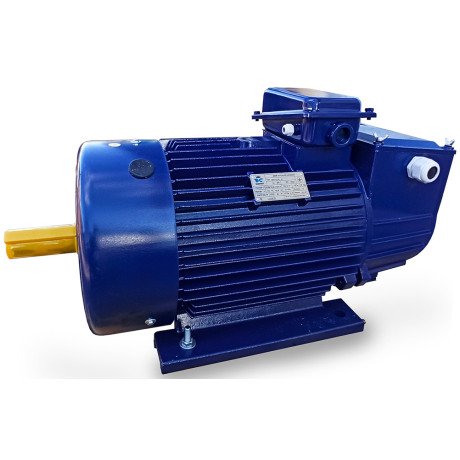

МТН MTF 400L10 crane electric motor 160 KW 600 rpm with phase rotor ІМ 1003
In Stock
Price
639 287.00 ₴
792 221.00 ₴
General info
2 years warranty
Оn electric motors and pump units.
The warranty on generators is from 1 year.
Fast shipping
In any way convenient for you
25 years of experience
They provide a comprehensive solution to the energy generation, engineering and driving force needs of your enterprise.
Characteristics
| Electric Motor type | сrane and metallurgical |
| Power, kW | 160 |
| Phase | 3 |
| Voltage, V | 380 (220, 660) |
| Rotation speed, rpm | 600 |
| Mounting version | ІМ 1003 |
| Power factor | 0,79 |
| Rated stator current at 220/380 V, A | 340 |
| Rated rotor current, A | 245 |
| Protection class | IP54 |
| Ratio max. force torque to nominal | 2,8 |
| Rotor voltage, V | 392 |
| Current frequency, Hz | 50 |
| Efficiency, % | 91 |
| Weight, Kg | 2060 |
| Country of origin | Ukraine |
Description
MTN MTF 400L10 is a crane motor with a phase rotor IM 1003. It is characterized by high power and rotational frequency, which makes it ideal for use in crane and metallurgical industries.
Features
- Power: 160 kW
- Voltage: 380 V (220, 660)
- Efficiency: 91%
- Phase: 3
- Rotation frequency: 600 rpm
- Mounting design: IM 1003
- Power factor: 0.79
- Protection class: IP54
- Ratio of maximum torque, force to nominal: 2.8
- Current frequency: 50 Hz
- Weight: 2060 kg
- Country of origin: Ukraine
- Stator nominal current at 220/380 V: 340 A
- Rotor nominal current: 245 A
- Rotor voltage: 392 V
Motor type: crane-metallurgical
Usage
MTN MTF 400L10 crane motor is ideal for use in crane and metallurgical systems. Thanks to its high power and rotational frequency, it ensures efficient operation and reliable performance in heavy conditions.
Technical Specifications
- Power: 160 kW
- Voltage: 380 V (220, 660)
- Efficiency: 91%
- Phase: 3
- Rotation frequency: 600 rpm
- Mounting design: IM 1003
- Power factor: 0.79
- Protection class: IP54
- Ratio of maximum torque, force to nominal: 2.8
- Current frequency: 50 Hz
- Weight: 2060 kg
- Country of origin: Ukraine
- Stator nominal current at 220/380 V: 340 A
- Rotor nominal current: 245 A
- Rotor voltage: 392 V
Motor type: crane-metallurgical
