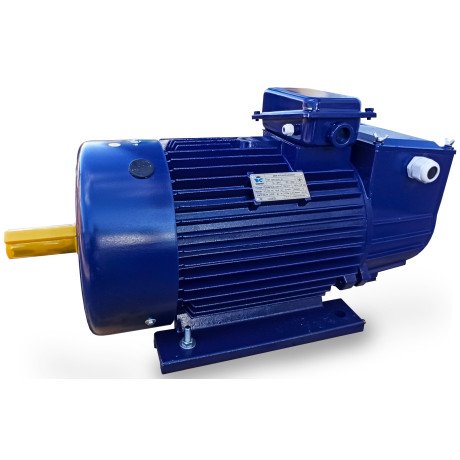

МТН MTF 280S8 crane electric motor 55 KW 750 rpm with phase rotor ІМ 1003
Price
General info
Оn electric motors and pump units.
The warranty on generators is from 1 year.
In any way convenient for you
They provide a comprehensive solution to the energy generation, engineering and driving force needs of your enterprise.
Characteristics
| Electric Motor type | сrane and metallurgical |
| Power, kW | 55 |
| Phase | 3 |
| Voltage, V | 380 (220, 660) |
| Rotation speed, rpm | 750 |
| Mounting version | ІМ 1003 |
| Power factor | 0,80 |
| Rated stator current at 220/380 V, A | 119 |
| Rated rotor current, A | 157 |
| Protection class | IP54 |
| Ratio max. force torque to nominal | 2,8 |
| Rotor voltage, V | 221 |
| Current frequency, Hz | 50 |
| Efficiency, % | 88 |
| Weight, Kg | 690 |
| Country of origin | Ukraine |
Description
The MTN MTF 280S8 crane electric motor with phase rotor IM 1003 is a powerful and reliable electric motor designed for use in crane and metallurgical installations. It has a high power of 55 kW, which allows for effortless movement of large loads. This electric motor is developed using the most modern technologies, which guarantees its durability and reliability.
Features
- Power, kW: 55
- Voltage, V: 380 (220, 660)
- Efficiency, %: 88
- Phase: 3
- Rotation speed, rpm: 750
- Mounting design: IM 1003
- Power factor: 0.80
- Protection class: IP54
- Max. torque to nominal force ratio: 2.8
- Current frequency, Hz: 50
- Weight, kg: 690
- Country of origin: Ukraine
- Stator nominal current at 220/380 V, A: 119
- Rotor nominal current, A: 157
- Rotor voltage, V: 221
Motor type: crane-metallurgical
Usage
The MTN MTF 280S8 crane electric motor with phase rotor IM 1003 is suitable for use in crane installations and metallurgical plants. Thanks to its high power and reliability, this electric motor ensures efficient and fast movement of loads. It can also be used in various industrial sectors where a reliable and powerful electric motor is needed.
Technical Specifications
- Power, kW: 55
- Voltage, V: 380 (220, 660)
- Efficiency, %: 88
- Phase: 3
- Rotation speed, rpm: 750
- Mounting design: IM 1003
- Power factor: 0.80
- Protection class: IP54
- Max. torque to nominal force ratio: 2.8
- Current frequency, Hz: 50
- Weight, kg: 690
- Country of origin: Ukraine
- Stator nominal current at 220/380 V, A: 119
- Rotor nominal current, A: 157
- Rotor voltage, V: 221
Motor type: crane-metallurgical
