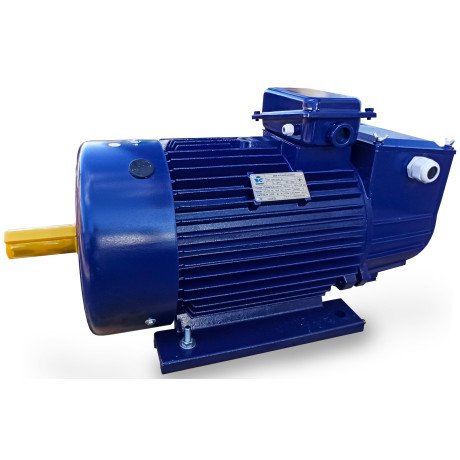

МТН MTF 280M8 crane electric motor 75 KW 750 rpm with phase rotor ІМ 1003
Price
General info
Оn electric motors and pump units.
The warranty on generators is from 1 year.
In any way convenient for you
They provide a comprehensive solution to the energy generation, engineering and driving force needs of your enterprise.
Characteristics
| Electric Motor type | сrane and metallurgical |
| Power, kW | 75 |
| Phase | 3 |
| Voltage, V | 380 (220, 660) |
| Rotation speed, rpm | 750 |
| Mounting version | ІМ 1003 |
| Power factor | 0,84 |
| Rated stator current at 220/380 V, A | 150 |
| Rated rotor current, A | 163 |
| Protection class | IP54 |
| Ratio max. force torque to nominal | 2,8 |
| Rotor voltage, V | 289 |
| Current frequency, Hz | 50 |
| Efficiency, % | 90 |
| Weight, Kg | 790 |
| Country of origin | Ukraine |
Description
MTN MTF 280M8 is a crane motor with a phase rotor IM 1003. It has a power of 75 kW and a speed of 750 rpm. This motor is used in crane-metallurgical installations.
Features
- Phase: 3
- Efficiency: 90%
- Power factor: 0.84
- Protection class: IP54
- Max. torque to nominal force ratio: 2.8
- Weight: 790 kg
- Country of origin: Ukraine
Mounting design: IM 1003
Usage
MTN MTF 280M8 is designed for use in crane-metallurgical installations. It can be used for lifting and moving loads in industrial areas. This motor ensures reliable and efficient operation of cranes and guarantees safety in the working environment.
Technical Specifications
- Power, kW: 75
- Voltage, V: 380 (220, 660)
- Phase: 3
- Speed, rpm: 750
- Efficiency, %: 90
- Power factor: 0.84
- Protection class: IP54
- Max. torque to nominal force ratio: 2.8
- Current frequency, Hz: 50
- Weight, kg: 790
- Country of origin: Ukraine
- Stator nominal current at 220/380 V, A: 150
- Rotor nominal current, A: 163
- Rotor voltage, V: 289
Motor type: crane-metallurgical
