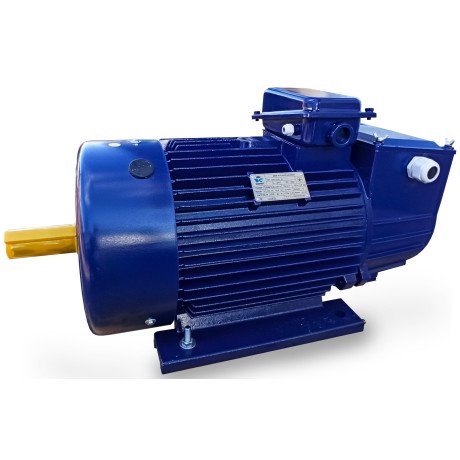

МТН MTF 280M6 crane electric motor 90 KW 1000 rpm with phase rotor ІМ 1003
Price
General info
Оn electric motors and pump units.
The warranty on generators is from 1 year.
In any way convenient for you
They provide a comprehensive solution to the energy generation, engineering and driving force needs of your enterprise.
Characteristics
| Electric Motor type | сrane and metallurgical |
| Power, kW | 90 |
| Phase | 3 |
| Voltage, V | 380 (220, 660) |
| Rotation speed, rpm | 1000 |
| Mounting version | ІМ 1003 |
| Power factor | 0,83 |
| Rated stator current at 220/380 V, A | 172 |
| Rated rotor current, A | 167 |
| Protection class | IP54 |
| Ratio max. force torque to nominal | 2,8 |
| Rotor voltage, V | 332 |
| Current frequency, Hz | 50 |
| Efficiency, % | 92 |
| Weight, Kg | 780 |
| Country of origin | Ukraine |
Description
Product description for MTF 280M6 crane motor with phase rotor IM 1003.
Features
- Power, kW: 90
- Voltage, V: 380 (220, 660)
- Efficiency, %: 92
- Phase: 3
- Rotation speed, rpm: 1000
- Mounting design: IM 1003
- Power factor: 0.83
- Protection class: IP54
- Maximum torque to nominal force ratio: 2.8
- Current frequency, Hz: 50
- Weight, kg: 780
- Country of origin: Ukraine
- Stator nominal current at 220/380 V, A: 172
- Rotor nominal current, A: 167
- Rotor voltage, V: 332
Motor type: crane-metallurgical
Usage
The MTF 280M6 crane motor with phase rotor IM 1003 is perfect for use in crane systems and metallurgical processes. With its power of 90 kW and high efficiency, it provides reliable and fast lifting of loads. The IP54 protection class ensures protection against dust and water splashes, making this motor durable and resistant to negative external influences. Also, the weight of 780 kg ensures stability and reliability during crane movement and load lifting.
Technical Specifications
- Power, kW: 90
- Voltage, V: 380 (220, 660)
- Efficiency, %: 92
- Phase: 3
- Rotation speed, rpm: 1000
- Mounting design: IM 1003
- Power factor: 0.83
- Protection class: IP54
- Maximum torque to nominal force ratio: 2.8
- Current frequency, Hz: 50
- Weight, kg: 780
- Country of origin: Ukraine
- Stator nominal current at 220/380 V, A: 172
- Rotor nominal current, A: 167
- Rotor voltage, V: 332
Motor type: crane-metallurgical
