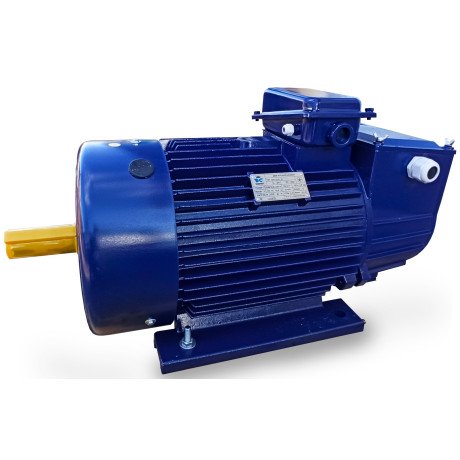

МТН MTF 280L8 crane electric motor 90 KW 750 rpm with phase rotor ІМ 1003

0 reviews

МТН MTF 280L8 crane electric motor 90 KW 750 rpm with phase rotor ІМ 1003 2

In Stock

Product Code:

Price

Made to order

Manager:

0 800 30 22 21

Konstantin Vasylchenko

Manager:

0 800 30 22 21

Artur Lytvynchuk

General info

2 years warranty

Оn electric motors and pump units.

The warranty on generators is from 1 year.

Fast shipping

In any way convenient for you

25 years of experience

They provide a comprehensive solution to the energy generation, engineering and driving force needs of your enterprise.

Characteristics

Electric Motor type	сrane and metallurgical
Power, kW	90
Phase	3
Voltage, V	380 (220, 660)
Rotation speed, rpm	750
Mounting version	ІМ 1003
Power factor	0,82
Rated stator current at 220/380 V, A	185
Rated rotor current, A	160
Protection class	IP54
Ratio max. force torque to nominal	2,8
Rotor voltage, V	350
Current frequency, Hz	50
Efficiency, %	90
Weight, Kg	898
Country of origin	Ukraine

Description

MTN MTF 280L8 is a high-power and reliable crane motor. It is equipped with a phase rotor IM 1003, which ensures efficient operation in various conditions.

Features

Power, kW: 90
Voltage, V: 380 (220, 660)
Efficiency, %: 90
Phase: 3
Speed, rpm: 750
Mounting design: IM 1003
Power factor: 0.82
Protection class: IP54
Maximum torque to nominal force ratio: 2.8
Current frequency, Hz: 50
Weight, kg: 898
Country of origin: Ukraine
Stator nominal current at 220/380 V, A: 185
Rotor nominal current, A: 160
Rotor voltage, V: 350

Usage

The crane motor MTN MTF 280L8 with a phase rotor IM 1003 and a power of 90 kW is designed for use in crane systems and metallurgical production. It ensures reliable operation under high loads, allowing for efficient movement of heavy loads.
