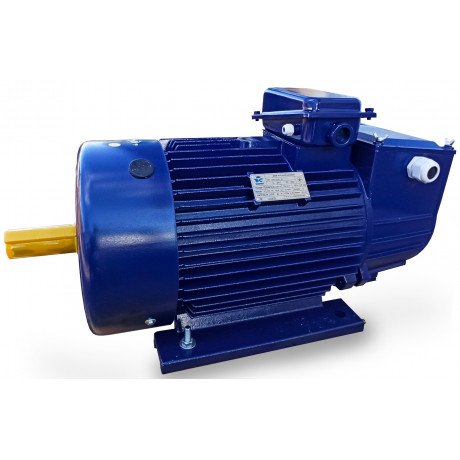

МТН MTF 280L10 crane electric motor 75 KW 600 rpm with phase rotor ІМ 1003
Price
General info
Оn electric motors and pump units.
The warranty on generators is from 1 year.
In any way convenient for you
They provide a comprehensive solution to the energy generation, engineering and driving force needs of your enterprise.
Characteristics
| Electric Motor type | сrane and metallurgical |
| Power, kW | 75 |
| Phase | 3 |
| Voltage, V | 380 (220, 660) |
| Rotation speed, rpm | 600 |
| Mounting version | ІМ 1003 |
| Power factor | 0,76 |
| Rated stator current at 220/380 V, A | 165 |
| Rated rotor current, A | 146 |
| Protection class | IP54 |
| Ratio max. force torque to nominal | 2,8 |
| Rotor voltage, V | 321 |
| Current frequency, Hz | 50 |
| Efficiency, % | 89 |
| Weight, Kg | 899 |
| Country of origin | Ukraine |
Description
The MTF 280L10 crane electric motor is a powerful and reliable solution for use in cranes and metallurgical plants. It ensures efficient operation due to low power loss coefficient and high efficiency.
Features
- Power: 75 kW
- Voltage: 380 V (220, 660)
- Efficiency: 89%
- Phase: 3
- Speed: 600 rpm
- Mounting design: IM 1003
- Power factor: 0.76
- Protection class: IP54
- Max. torque to nominal ratio: 2.8
- Current frequency: 50 Hz
- Weight: 899 kg
- Country of origin: Ukraine
- Stator nominal current at 220/380 V: 165 A
- Rotor nominal current: 146 A
- Rotor voltage: 321 V
Motor type: crane-metallurgical
Usage
The MTF 280L10 electric motor is ideal for use in cranes and metallurgical plants. Its high power and reliability ensure efficient operation in the toughest conditions. It can be used for lifting and moving heavy loads, providing stable and uninterrupted operation for a long time.
Technical Specifications
- Power, kW: 75
- Voltage, V: 380 (220, 660)
- Efficiency, %: 89
- Phase: 3
- Speed, rpm: 600
- Mounting design: IM 1003
- Power factor: 0.76
- Protection class: IP54
- Max. torque to nominal ratio: 2.8
- Current frequency, Hz: 50
- Weight, kg: 899
- Country of origin: Ukraine
- Stator nominal current at 220/380 V, A: 165
- Rotor nominal current, A: 146
- Rotor voltage, V: 321
Motor type: crane-metallurgical
