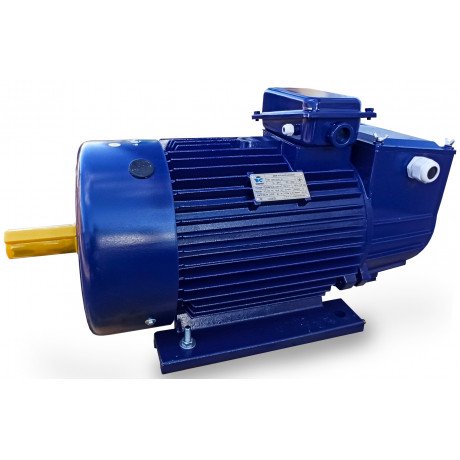

МТН MTF 225M8 crane electric motor 30 KW 750 rpm with phase rotor ІМ 1003
Price
General info
Оn electric motors and pump units.
The warranty on generators is from 1 year.
In any way convenient for you
They provide a comprehensive solution to the energy generation, engineering and driving force needs of your enterprise.
Characteristics
| Electric Motor type | сrane and metallurgical |
| Power, kW | 30 |
| Phase | 3 |
| Voltage, V | 380 (220, 660) |
| Rotation speed, rpm | 750 |
| Mounting version | ІМ 1003 |
| Power factor | 0,74 |
| Rated stator current at 220/380 V, A | 120.2/69.4 |
| Rated rotor current, A | 83.7 |
| Protection class | IP54 |
| Ratio max. force torque to nominal | 2,8 |
| Rotor voltage, V | 231 |
| Current frequency, Hz | 50 |
| Efficiency, % | 87 |
| Weight, Kg | 388 |
| Country of origin | Ukraine |
Description
The MTN MTF 225M8 crane motor is a reliable and powerful device designed for use in crane mechanisms. It is equipped with a phase rotor IM 1003, which ensures high efficiency and reliable operation.
Features
- Power: 30 kW
- Voltage: 380 V (220, 660)
- Efficiency: 87%
- Phase: 3
- Speed: 750 rpm
- Mounting design: IM 1003
- Power factor: 0.74
- Protection class: IP54
- Ratio of maximum torque, force to nominal: 2.8
- Current frequency: 50 Hz
- Weight: 388 kg
- Country of origin: Ukraine
- Stator nominal current at 220/380 V: 120.2/69.4 A
- Rotor nominal current: 83.7 A
- Rotor voltage: 231 V
Motor type: crane-metallurgical
Usage
This crane motor is ideal for use in crane mechanisms where a reliable and powerful drive system is required. It provides high precision and stability, making it the perfect choice for heavy industrial conditions.
Technical Specifications
- Power: 30 kW
- Voltage: 380 V (220, 660)
- Efficiency: 87%
- Phase: 3
- Speed: 750 rpm
- Mounting design: IM 1003
- Power factor: 0.74
- Protection class: IP54
- Ratio of maximum torque, force to nominal: 2.8
- Current frequency: 50 Hz
- Weight: 388 kg
- Country of origin: Ukraine
- Stator nominal current at 220/380 V: 120.2/69.4 A
- Rotor nominal current: 83.7 A
- Rotor voltage: 231 V
Motor type: crane-metallurgical
