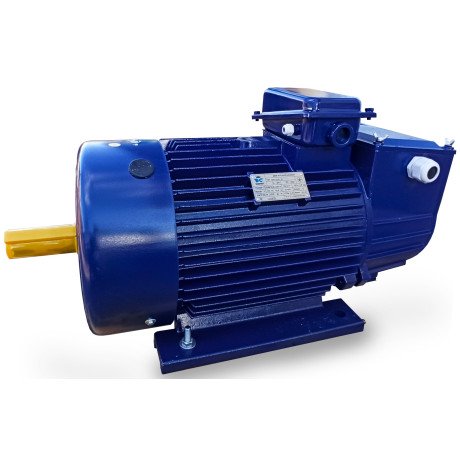

МТН MTF 200LB6 crane electric motor 30 kW 1000 rpm with phase rotor ІМ 1003
Price
General info
Оn electric motors and pump units.
The warranty on generators is from 1 year.
In any way convenient for you
They provide a comprehensive solution to the energy generation, engineering and driving force needs of your enterprise.
Characteristics
| Electric Motor type | сrane and metallurgical |
| Power, kW | 30 |
| Phase | 3 |
| Voltage, V | 380 (220, 660) |
| Rotation speed, rpm | 1000 |
| Mounting version | ІМ 1003 |
| Power factor | 0,8 |
| Rated stator current at 220/380 V, A | 65 |
| Rated rotor current, A | 79 |
| Protection class | IP54 |
| Ratio max. force torque to nominal | 2,8 |
| Rotor voltage, V | 244 |
| Current frequency, Hz | 50 |
| Efficiency, % | 85 |
| Weight, Kg | 318 |
| Country of origin | Ukraine |
Description
The MTF 200LB6 crane motor is a three-phase squirrel cage motor IM 1003 with a power of 30 kW and a speed of 1000 rpm. It is a reliable and efficient motor that is perfect for use in cranes and metallurgical plants.
Features
- Voltage: 380 (220, 660) V
- Efficiency: 85%
- Phase: 3
- Mounting design: IM 1003
- Power factor: 0.8
- Protection class: IP54
- Max. torque to nominal force ratio: 2.8
- Current frequency: 50 Hz
- Weight: 318 kg
- Country of origin: Ukraine
- Stator nominal current at 220/380 V: 65 A
- Rotor nominal current: 79 A
- Rotor voltage: 244 V
Motor type: crane-metallurgical
Usage
The MTF 200LB6 crane motor is an ideal choice for crane installations and metallurgical plants. It provides powerful and reliable operation, allowing for easy movement of heavy loads and performance of difficult tasks.
Technical Specifications
- Power: 30 kW
- Voltage: 380 (220, 660) V
- Efficiency: 85%
- Phase: 3
- Speed: 1000 rpm
- Mounting design: IM 1003
- Power factor: 0.8
- Protection class: IP54
- Max. torque to nominal force ratio: 2.8
- Current frequency: 50 Hz
- Weight: 318 kg
- Country of origin: Ukraine
- Stator nominal current at 220/380 V: 65 A
- Rotor nominal current: 79 A
- Rotor voltage: 244 V
Motor type: crane-metallurgical
