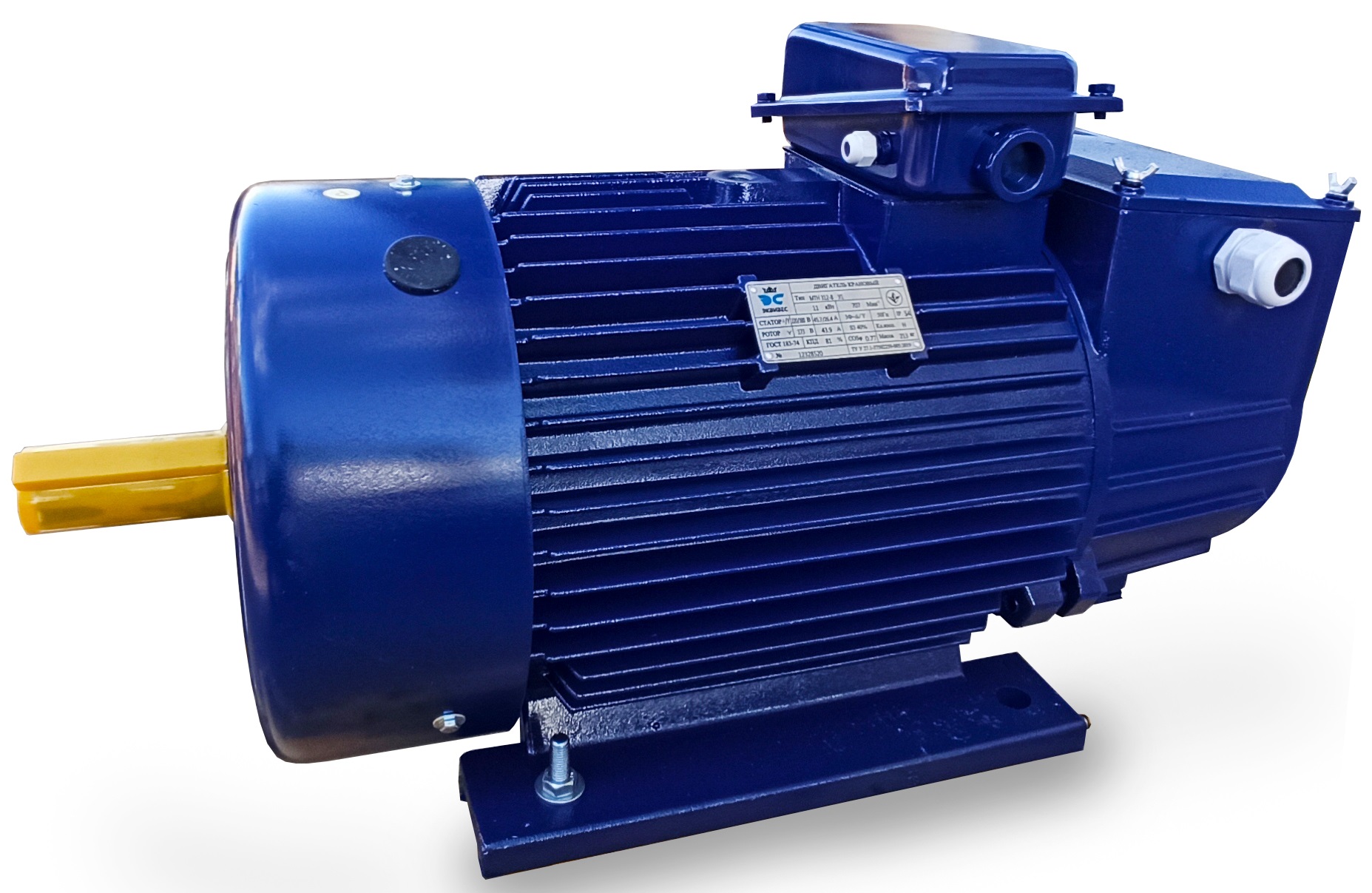

МТН MTF 200LA6 crane electric motor 22 kW 1000 rpm with phase rotor ІМ 1003
Price
General info
Оn electric motors and pump units.
The warranty on generators is from 1 year.
In any way convenient for you
They provide a comprehensive solution to the energy generation, engineering and driving force needs of your enterprise.
Characteristics
| Electric Motor type | сrane and metallurgical |
| Power, kW | 22 |
| Phase | 3 |
| Voltage, V | 380 (220, 660) |
| Rotation speed, rpm | 1000 |
| Mounting version | ІМ 1003 |
| Power factor | 0,8 |
| Rated stator current at 220/380 V, A | 47 |
| Rated rotor current, A | 62 |
| Protection class | IP54 |
| Ratio max. force torque to nominal | 2,8 |
| Rotor voltage, V | 233 |
| Current frequency, Hz | 50 |
| Efficiency, % | 85 |
| Weight, Kg | 295 |
| Country of origin | Ukraine |
Description
MTN MTF 200LA6 crane electric motor with phase rotor IM 1003 is a reliable and powerful electric motor designed for use in crane and metallurgical installations. It provides stable operation for a long time and has high efficiency.
Features
- Voltage: 380 V (220, 660)
- Efficiency: 85%
- Phase: 3
- Rotation speed: 1000 rpm
- Mounting design: IM 1003
- Power factor: 0.8
- Protection class: IP54
- Max. torque to nominal force ratio: 2.8
- Current frequency: 50 Hz
- Weight: 295 kg
- Country of origin: Ukraine
- Stator nominal current at 220/380 V: 47 A
- Rotor nominal current: 62 A
- Rotor voltage: 233 V
Power: 22 kW
Usage
The MTN MTF 200LA6 electric motor with phase rotor IM 1003 is ideal for use in crane systems and metallurgical installations. It provides powerful and reliable load movement and can also be used in various production processes where high complexity is required.
Technical Specifications
- Power, kW: 22
- Voltage, V: 380 (220, 660)
- Efficiency, %: 85
- Phase: 3
- Rotation speed, rpm: 1000
- Mounting design: IM 1003
- Power factor: 0.8
- Protection class: IP54
- Max. torque to nominal force ratio: 2.8
- Current frequency, Hz: 50
- Weight, kg: 295
- Country of origin: Ukraine
- Stator nominal current at 220/380 V, A: 47
- Rotor nominal current, A: 62
- Rotor voltage, V: 233
Motor type: crane-metallurgical
