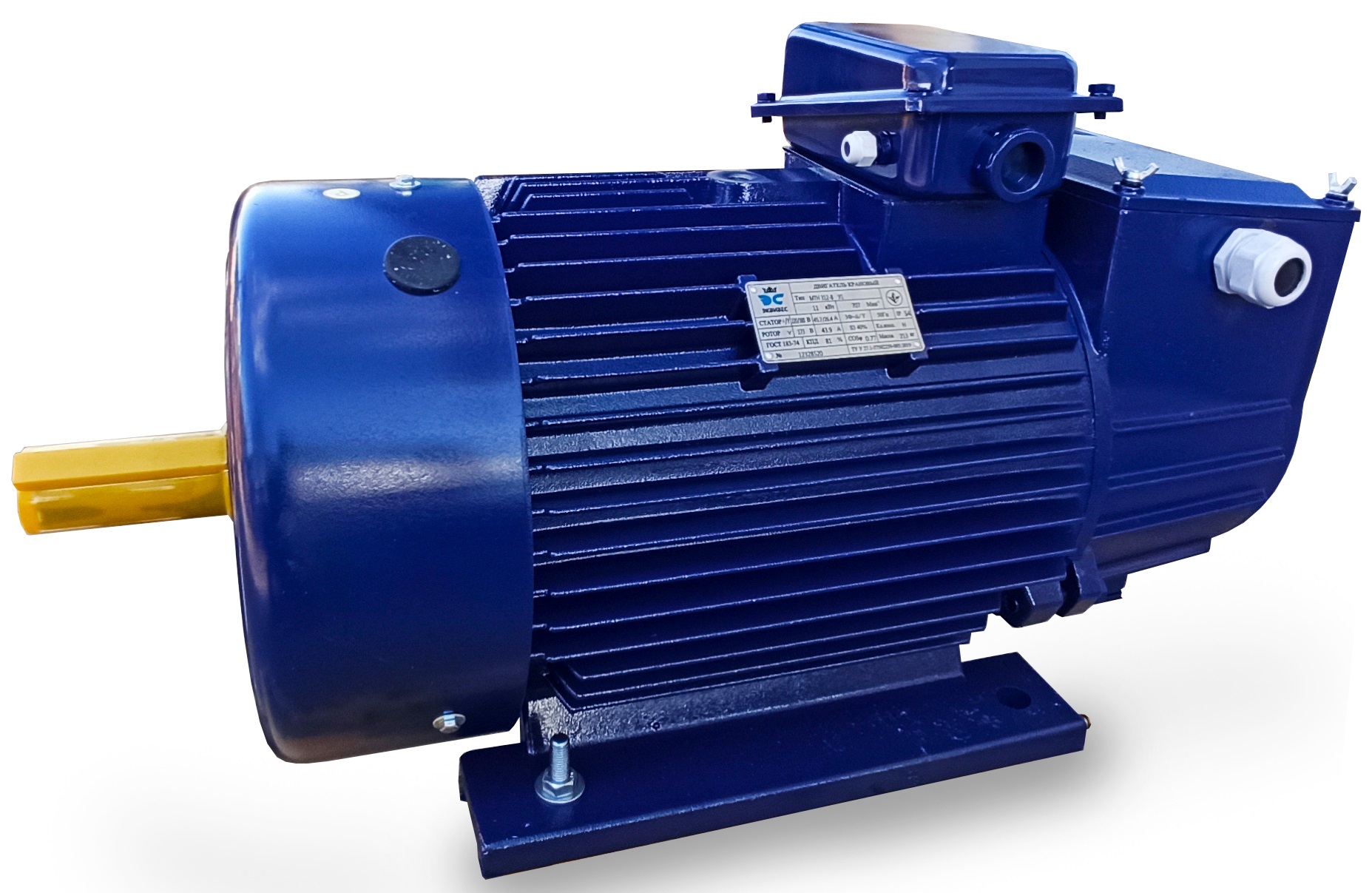

МТН MTF 132LB6 crane electric motor 7.5 kW 1000 pm with phase rotor ІМ 1001
In Stock
Price
Made to order
General info
2 years warranty
Оn electric motors and pump units.
The warranty on generators is from 1 year.
Fast shipping
In any way convenient for you
25 years of experience
They provide a comprehensive solution to the energy generation, engineering and driving force needs of your enterprise.
Characteristics
| Electric Motor type | сrane and metallurgical |
| Power, kW | 7,5 |
| Phase | 3 |
| Voltage, V | 380 (220, 660) |
| Shaft diameter, mm | 42 |
| Rotation speed, rpm | 1000 |
| Mounting version | ІМ 1001 |
| Power factor | 0,74 |
| Rated stator current at 220/380 V, A | 31.5/18.2 |
| Rated rotor current, A | 19,2 |
| Protection class | IP54 |
| Ratio max. force torque to nominal | 2,5 |
| Rotor voltage, V | 271 |
| Current frequency, Hz | 50 |
| Efficiency, % | 77 |
| Weight, Kg | 127 |
| Country of origin | Ukraine |
Description
MTN MTF 132LB6 is a crane motor designed for use in crane systems and metallurgical processes. It provides reliable and efficient operation due to its technical characteristics and features.
Features
- Power: 7.5 kW
- Voltage: 380 (220, 660) V
- Efficiency: 77%
- Phase: 3
- Shaft Diameter: 42 mm
- Rotation Speed: 1000 rpm
- Mounting Design: IM 1001
- Power Factor: 0.74
- Protection Class: IP54
- Max. Torque/Force to Nominal Ratio: 2.5
- Current Frequency: 50 Hz
- Weight: 127 kg
- Country of Origin: Ukraine
- Stator Nominal Current at 220/380 V: 31.5/18.2 A
- Rotor Nominal Current: 19.2 A
- Rotor Voltage: 271 V
Motor Type: Crane-Metallurgical
Usage
This crane motor is ideal for use in crane systems such as overhead cranes, gantry cranes, grab cranes, etc. It can also be used in metallurgical processes where reliability and high power are required.
Technical Specifications
- Power: 7.5 kW
- Voltage: 380 (220, 660) V
- Efficiency: 77%
- Phase: 3
- Shaft Diameter: 42 mm
- Rotation Speed: 1000 rpm
- Mounting Design: IM 1001
- Power Factor: 0.74
- Protection Class: IP54
- Max. Torque/Force to Nominal Ratio: 2.5
- Current Frequency: 50 Hz
- Weight: 127 kg
- Country of Origin: Ukraine
- Stator Nominal Current at 220/380 V: 31.5/18.2 A
- Rotor Nominal Current: 19.2 A
- Rotor Voltage: 271 V
Motor Type: Crane-Metallurgical
