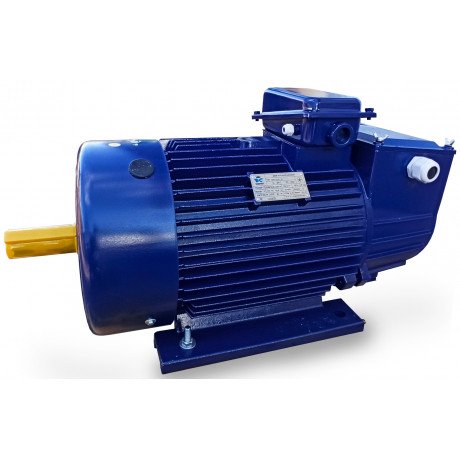

МТН MTF 112-6 crane electric motor 5 kW 1000 rpm with phase rotor ІМ 1001
Price
General info
Оn electric motors and pump units.
The warranty on generators is from 1 year.
In any way convenient for you
They provide a comprehensive solution to the energy generation, engineering and driving force needs of your enterprise.
Characteristics
| Electric Motor type | сrane and metallurgical |
| Power, kW | 5 |
| Phase | 3 |
| Voltage, V | 380 (220, 660) |
| Shaft diameter, mm | 35 |
| Rotation speed, rpm | 1000 |
| Mounting version | ІМ 1001 |
| Power factor | 0,75 |
| Rated stator current at 220/380 V, A | 22.3/12.9 |
| Rated rotor current, A | 17,5 |
| Protection class | IP54 |
| Ratio max. force torque to nominal | 2,5 |
| Rotor voltage, V | 205 |
| Current frequency, Hz | 50 |
| Efficiency, % | 77,9 |
| Weight, Kg | 102 |
| Country of origin | Ukraine |
Description:
MTN MTF 112-6 crane electric motor 5 kW 1000 rpm with phase rotor IM 1001 - a reliable and powerful electric motor designed for use in crane systems and metallurgical processes. It provides high productivity and reliable operation in harsh conditions.
Features:
- Power, kW: 5
- Voltage, V: 380 (220, 660)
- Efficiency, %: 77.9
- Phase: 3
- Shaft diameter, mm: 35
- Speed, rpm: 1000
- Mounting design: IM 1001
- Power factor: 0.75
- Protection class: IP54
- Max. torque to nominal force ratio: 2.5
- Current frequency, Hz: 50
- Weight, kg: 102
- Country of origin: Ukraine
- Stator nominal current at 220/380 V, A: 22.3/12.9
- Rotor nominal current, A: 17.5
- Rotor voltage, V: 205
Motor type: crane-metallurgical
Usage:
This crane electric motor is perfect for use in crane systems and metallurgical processes. It provides reliable and efficient operation during the lifting of heavy loads and performing various tasks in harsh conditions. Its high power, reliability, and optimal technical characteristics allow for uninterrupted and efficient operation in any circumstances.
Technical specifications:
- Power, kW: 5
- Voltage, V: 380 (220, 660)
- Efficiency, %: 77.9
- Phase: 3
- Shaft diameter, mm: 35
- Speed, rpm: 1000
- Mounting design: IM 1001
- Power factor: 0.75
- Protection class: IP54
- Max. torque to nominal force ratio: 2.5
- Current frequency, Hz: 50
- Weight, kg: 102
- Country of origin: Ukraine
- Stator nominal current at 220/380 V, A: 22.3/12.9
- Rotor nominal current, A: 17.5
- Rotor voltage, V: 205
Motor type: crane-metallurgical
