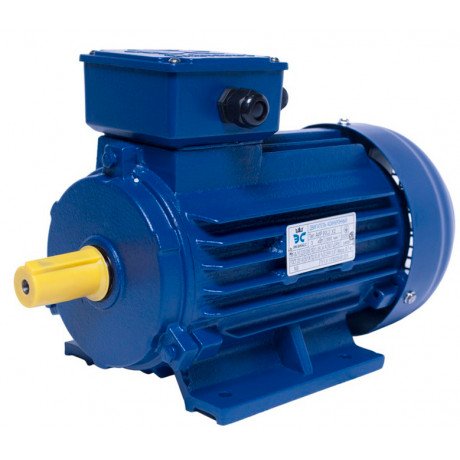

АИР90L4 electric motor 2,2 KW 1500 rpm ІМ1081
Price
General info
Оn electric motors and pump units.
The warranty on generators is from 1 year.
In any way convenient for you
They provide a comprehensive solution to the energy generation, engineering and driving force needs of your enterprise.
Characteristics
| Electric Motor type | general industrial |
| Power, kW | 2,2 |
| Phase | 3 |
| Voltage, V | 220/380 |
| Number of poles | 4 |
| Shaft diameter, mm | 24 |
| Rotation speed, rpm | 1500 |
| Mounting version | ІМ1081, ІМ2081, ІМ3081 |
| Power factor | 0,81 |
| Climatic version | U2 |
| Protection class | IP55 |
| Ratio max. force torque to nominal | 2,3 |
| Ratio of starting current to rated current | 6,8 |
| Ratio of starting torque to nominal | 2,3 |
| Current frequency, Hz | 50 |
| Efficiency, % | 80 |
| Weight, Kg | 17 |
| Country of origin | Ukraine |
Description
AIR90L4 electric motor is a general-purpose type of motor that provides efficient operation in various production conditions. Thanks to its technical characteristics and parameters, it is an ideal choice for various uses.
Features
- Voltage: 220/380 V
- Efficiency: 80%
- Phase: 3
- Number of poles: 4
- Shaft diameter: 24 mm
- Speed: 1500 rpm
- Mounting design: IM1081, IM2081, IM3081
- Power factor: 0.81
- Protection class: IP55
- Climatic design: U2
- Ratio of maximum torque, force to nominal: 2.3
- Ratio of starting current to nominal: 6.8
- Ratio of starting torque, force to nominal: 2.3
- Current frequency: 50 Hz
- Weight: 17 kg
- Country of origin: Ukraine
Power: 2.2 kW
Usage
This electric motor can be used in various industries, including industrial production, agriculture, construction, and many others. Thanks to its technical characteristics, it ensures reliable and stable operation for a long time.
Technical Specifications
- Power, kW: 2.2
- Voltage, V: 220/380
- Efficiency, %: 80
- Phase: 3
- Number of poles: 4
- Shaft diameter, mm: 24
- Speed, rpm: 1500
- Mounting design: IM1081, IM2081, IM3081
- Power factor: 0.81
- Protection class: IP55
- Climatic design: U2
- Ratio of maximum torque, force to nominal: 2.3
- Ratio of starting current to nominal: 6.8
- Ratio of starting torque, force to nominal: 2.3
- Current frequency, Hz: 50
- Weight, kg: 17
- Country of origin: Ukraine
Type of motor: general-purpose
