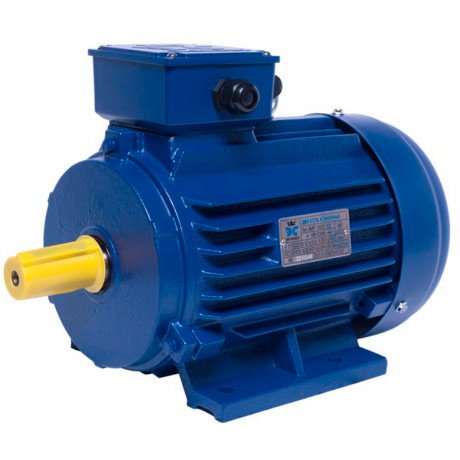

АИР100L8 electric motor 1.5 KW 750 rpm ІМ1081
Price
General info
Оn electric motors and pump units.
The warranty on generators is from 1 year.
In any way convenient for you
They provide a comprehensive solution to the energy generation, engineering and driving force needs of your enterprise.
Characteristics
| Electric Motor type | general industrial |
| Power, kW | 1,5 |
| Phase | 3 |
| Voltage, V | 380/660 |
| Number of poles | 8 |
| Rotation speed, rpm | 750 |
| Mounting version | ІМ1081, ІМ2081, ІМ3081 |
| Power factor | 0,69 |
| Climatic version | U2 |
| Protection class | IP55 |
| Ratio max. force torque to nominal | 2 |
| Ratio of starting current to rated current | 4,7 |
| Ratio of starting torque to nominal | 1,9 |
| Current frequency, Hz | 50 |
| Efficiency, % | 73,5 |
| Weight, Kg | 35 |
| Country of origin | Ukraine |
Description
AIR100L8 is a general-purpose electric motor with a power of 1.5 kW and a voltage of 380/660 V. It has 3 phases and 8 poles, which ensures stable operation. The rotation speed is 750 rpm. The electric motor is available in mounting versions IM1081, IM2081, and IM3081.
Features
- IP55 protection class provides protection against dust and moisture, making it reliable for use in various conditions;
- Climate class U2 allows the electric motor to be used at temperatures from -20°C to +40°C;
- The ratio of maximum torque to nominal is 2, providing powerful acceleration;
- The ratio of starting current to nominal is 4.7, allowing the electric motor to be started without the risk of overload;
- The ratio of starting torque to nominal is 1.9, ensuring efficient operation;
- The current frequency is 50 Hz, which corresponds to usage standards in many countries;
- The weight of the electric motor is 35 kg, making it easy to transport;
- Manufacturer - Ukraine, ensuring high product quality.
The power factor is 0.69, which allows for efficient use of the electric motor;
Usage
AIR100L8 electric motor with a power of 1.5 kW and a rotation speed of 750 rpm is ideal for use in various industrial sectors. It can be used to drive machines and equipment with different types of loads.
Technical Specifications
- Power, kW: 1.5
- Voltage, V: 380/660
- Efficiency, %: 73.5
- Phases: 3
- Number of poles: 8
- Rotation speed, rpm: 750
- Mounting versions: IM1081, IM2081, IM3081
- Power factor: 0.69
- Protection class: IP55
- Climate class: U2
- Ratio of maximum torque to nominal: 2
- Ratio of starting current to nominal: 4.7
- Ratio of starting torque to nominal: 1.9
- Current frequency, Hz: 50
- Weight, kg: 35
- Country of manufacturer: Ukraine
Electric motor type: general-purpose
