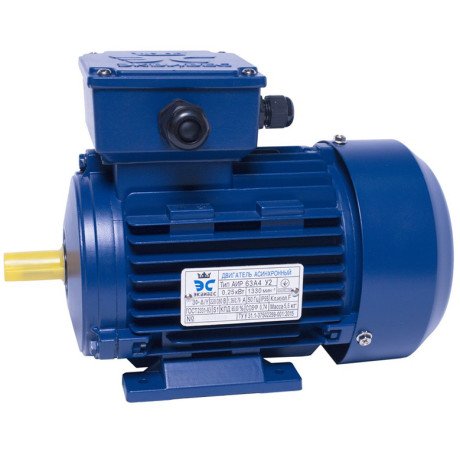

АИР63A6 electric motor 0,18 KW 1000 rpm IM1081
Price
General info
Оn electric motors and pump units.
The warranty on generators is from 1 year.
In any way convenient for you
They provide a comprehensive solution to the energy generation, engineering and driving force needs of your enterprise.
Characteristics
| Electric Motor type | general industrial |
| Power, kW | 0,18 |
| Phase | 3 |
| Voltage, V | 220/380 |
| Number of poles | 6 |
| Shaft diameter, mm | 14 |
| Rotation speed, rpm | 1000 |
| Mounting version | ІМ1081, ІМ2081, ІМ3081, ІМ2181, ІМ3181 |
| Power factor | 0,64 |
| Climatic version | U2 |
| Protection class | IP55 |
| Ratio max. force torque to nominal | 2 |
| Ratio of starting current to rated current | 4,1 |
| Ratio of starting torque to nominal | 1,9 |
| Current frequency, Hz | 50 |
| Efficiency, % | 55,5 |
| Weight, Kg | 6,4 |
| Country of origin | Ukraine |
Description
AIR63A6 0.18 kW 1000 rpm IM1081 electric motor is a general-purpose motor that meets the highest standards of quality and reliability. It is designed in a compact design with high technical characteristics.
Features
- Power: 0.18 kW
- Voltage: 220/380 V
- Efficiency: 55.5%
- Phase: 3
- Number of poles: 6
- Shaft diameter: 14 mm
- Speed: 1000 rpm
- Mounting design: IM1081, IM2081, IM3081, IM2181, IM3181
- Power factor: 0.64
- Protection class: IP55
- Climatic design: U2
- Ratio of maximum torque, force to nominal: 2
- Ratio of starting current to nominal: 4.1
- Ratio of starting torque, force to nominal: 1.9
- Current frequency: 50 Hz
- Weight: 6.4 kg
- Country of origin: Ukraine
Motor type: general-purpose
Usage
The AIR63A6 electric motor is ideal for various industrial applications. It can be used in machine building, metal processing, light and food industries, mechanical processing enterprises, and many other industries.
Technical Specifications
- Power: 0.18 kW
- Voltage: 220/380 V
- Efficiency: 55.5%
- Phase: 3
- Number of poles: 6
- Shaft diameter: 14 mm
- Speed: 1000 rpm
- Mounting design: IM1081, IM2081, IM3081, IM2181, IM3181
- Power factor: 0.64
- Protection class: IP55
- Climatic design: U2
- Ratio of maximum torque, force to nominal: 2
- Ratio of starting current to nominal: 4.1
- Ratio of starting torque, force to nominal: 1.9
- Current frequency: 50 Hz
- Weight: 6.4 kg
- Country of origin: Ukraine
Motor type: general-purpose
