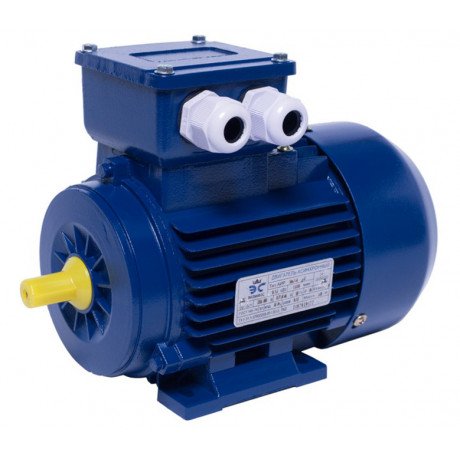

АИР56A2 electric motor 0,18 KW 3000 rpm ІМ1081
Price
General info
Оn electric motors and pump units.
The warranty on generators is from 1 year.
In any way convenient for you
They provide a comprehensive solution to the energy generation, engineering and driving force needs of your enterprise.
Characteristics
| Electric Motor type | general industrial |
| Power, kW | 0,18 |
| Phase | 3 |
| Voltage, V | 220/380 |
| Number of poles | 2 |
| Shaft diameter, mm | 11 |
| Rotation speed, rpm | 3000 |
| Mounting version | ІМ1081, ІМ2081, ІМ3081, ІМ2181, ІМ3181 |
| Power factor | 0,77 |
| Climatic version | U2 |
| Protection class | IP55 |
| Ratio max. force torque to nominal | 2,2 |
| Ratio of starting current to rated current | 5,3 |
| Ratio of starting torque to nominal | 2,2 |
| Current frequency, Hz | 50 |
| Efficiency, % | 65,7 |
| Weight, Kg | 4,7 |
| Country of origin | Ukraine |
Description
AIR56A2 is a small power general-purpose electric motor. This motor is suitable for various applications and has a high level of reliability and efficiency. Manufactured in Ukraine using the latest technologies, it meets all requirements and standards, ensuring its reliable operation for a long time.
Features
- Voltage: 220/380 V
- Efficiency: 65.7%
- Phase: 3
- Number of poles: 2
- Shaft diameter: 11 mm
- Speed: 3000 rpm
- Mounting design: IM1081, IM2081, IM3081, IM2181, IM3181
- Power factor: 0.77
- Protection class: IP55
- Climatic design: U2
- Max torque to nominal force ratio: 2.2
- Starting current to nominal current ratio: 5.3
- Starting torque to nominal force ratio: 2.2
- Current frequency: 50 Hz
- Weight: 4.7 kg
- Country of origin: Ukraine
Power: 0.18 kW
Usage
This electric motor can be used in various industrial sectors where low power and reliable operation are required. It is suitable for connection to different types of machines, mechanisms, and equipment. Thanks to its compact design, it can be easily installed and has a small weight, which reduces transportation costs.
Technical Specifications
| General-purpose |
| 0.18 |
| 220/380 |
| 65.7 |
| 3 |
| 2 |
| 11 |
| 3000 |
| IM1081, IM2081, IM3081, IM2181, IM3181 |
| 0.77 |
| IP55 |
| U2 |
| 2.2 |
| 5.3 |
| 2.2 |
| 50 |
| 4.7 |
| Ukraine |
