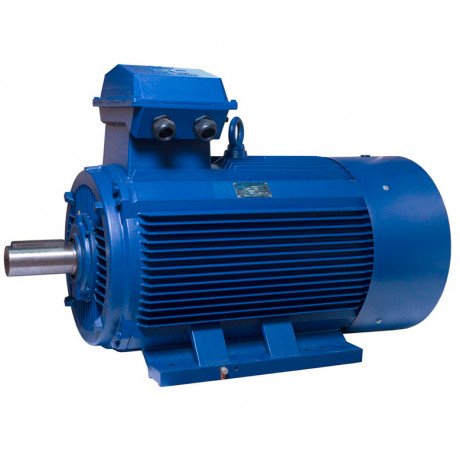

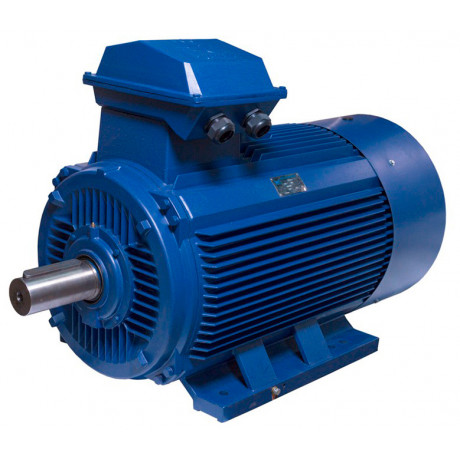

АИР355S6 electric motor 160 KW 1000 rpm ІМ1001
Price
General info
Оn electric motors and pump units.
The warranty on generators is from 1 year.
In any way convenient for you
They provide a comprehensive solution to the energy generation, engineering and driving force needs of your enterprise.
Characteristics
| Electric Motor type | general industrial |
| Power, kW | 160 |
| Phase | 3 |
| Voltage, V | 380/660 |
| Number of poles | 6 |
| Shaft diameter, mm | 1000 |
| Rotation speed, rpm | 1000 |
| Mounting version | ІМ1001, ІМ2001 |
| Power factor | 0,88 |
| Climatic version | U2 |
| Protection class | IP55 |
| Ratio max. force torque to nominal | 2,2 |
| Ratio of starting current to rated current | 6,6 |
| Ratio of starting torque to nominal | 1,9 |
| Current frequency, Hz | 50 |
| Efficiency, % | 94,7 |
| Weight, Kg | 1550 |
| Country of origin | Ukraine |
Description:
The AIR355S6 electric motor is a general-purpose motor with a power of 160 kW. It is ideal for use in various industrial sectors, providing reliable and efficient operation.
Features:
- Voltage: 380/660 V
- Efficiency: 94.7%
- Phase: 3
- Number of poles: 6
- Shaft diameter: 1000 mm
- Speed: 1000 rpm
- Mounting design: IM1001, IM2001
- Power factor: 0.88
- Protection class: IP55
- Climatic design: U2
- Ratio of maximum torque, force to rated: 2.2
- Ratio of starting current to rated: 6.6
- Ratio of starting torque, force to rated: 1.9
- Current frequency: 50 Hz
- Weight: 1550 kg
- Country of origin: Ukraine
Power: 160 kW
Usage:
This electric motor is ideal for use in various industrial sectors such as manufacturing, metalworking, chemical industry, and others. It provides reliable and efficient operation of drive systems, machinery, and equipment.
Technical specifications:
- Power, kW: 160
- Voltage, V: 380/660
- Efficiency, %: 94.7
- Phase: 3
- Number of poles: 6
- Shaft diameter, mm: 1000
- Speed, rpm: 1000
- Mounting design: IM1001, IM2001
- Power factor: 0.88
- Protection class: IP55
- Climatic design: U2
- Ratio of maximum torque, force to rated: 2.2
- Ratio of starting current to rated: 6.6
- Ratio of starting torque, force to rated: 1.9
- Current frequency, Hz: 50
- Weight, kg: 1550
- Country of origin: Ukraine
Motor type: general-purpose
