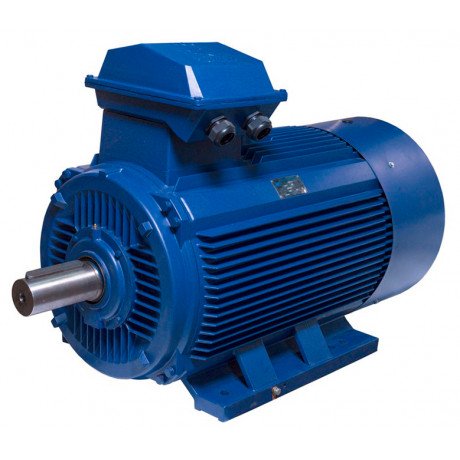

АИР355M8 electric motor 160 KW 750 rpm ІМ1001
Price
General info
Оn electric motors and pump units.
The warranty on generators is from 1 year.
In any way convenient for you
They provide a comprehensive solution to the energy generation, engineering and driving force needs of your enterprise.
Characteristics
| Electric Motor type | general industrial |
| Power, kW | 160 |
| Phase | 3 |
| Voltage, V | 380/660 |
| Number of poles | 8 |
| Shaft diameter, mm | 100 |
| Rotation speed, rpm | 750 |
| Mounting version | ІМ1001, ІМ2001 |
| Power factor | 0,82 |
| Climatic version | U2 |
| Protection class | IP55 |
| Ratio max. force torque to nominal | 2,2 |
| Ratio of starting current to rated current | 6,3 |
| Ratio of starting torque to nominal | 1,7 |
| Current frequency, Hz | 50 |
| Efficiency, % | 94,3 |
| Weight, Kg | 2150 |
| Country of origin | Ukraine |
Description
AIR355M8 is a general-purpose type of electric motor with a power of 160 kW. This electric motor has high efficiency with a power factor of 0.82 and an efficiency of 94.3%. It operates at a voltage of 380/660 V and has a phase of 3. The total number of poles is 8, which ensures stable operation of the device. The shaft diameter is 100 mm, and the rotational speed is 750 rpm.
Features
- IP55 protection class guarantees protection of the electric motor from dust and moisture, making it reliable in various operating conditions.
- Climate class U2 ensures stable operation of the electric motor at high and low temperatures.
The mounting design has two options - IM1001 and IM2001, which allows easy adaptation of the electric motor to your equipment.
Usage
This electric motor is excellent for use in various industrial sectors. Thanks to its technical characteristics, it can be used in pumping stations, compressor installations, conveyors, and other devices that require a powerful and reliable electric motor.
Technical Specifications
- Power, kW: 160
- Voltage, V: 380/660
- Efficiency, %: 94.3
- Phase: 3
- Number of poles: 8
- Shaft diameter, mm: 100
- Rotational speed, rpm: 750
- Mounting design: IM1001, IM2001
- Power factor: 0.82
- Protection class: IP55
- Climate class: U2
- Max. torque to nominal force ratio: 2.2
- Starting current to nominal current ratio: 6.3
- Starting torque to nominal force ratio: 1.7
- Current frequency, Hz: 50
- Weight, kg: 2150
- Country of origin: Ukraine
Electric motor type: general-purpose
