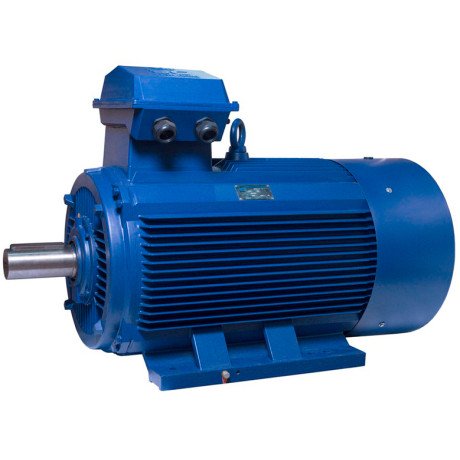

АИР315M4 electric motor 200 KW 1500 rpm ІМ1001

Description

AIR315M4 is a general-purpose industrial motor that will be a reliable solution for your enterprise. It has a power of 200 kW and rotates at a speed of 1500 revolutions per minute. Due to its reliability and efficiency, this electric motor can be used in various industries.

Features

High efficiency with 95% efficiency, which reduces electricity consumption costs;
• 3-phase ensures stable operation of the electric motor;
• Mounting options available in IM1001 and IM2001 versions;
• IP55 protection class provides reliable protection against dust and moisture;
• U2 climate design allows the electric motor to be used in humid and low-temperature conditions;
• The ratio of maximum torque to nominal is 2.4, providing a powerful traction reserve;
• The presence of a starting current to the nominal in a ratio of 6.4 ensures safe and stable start-up;
• The ratio of the starting torque to the nominal is 2.2, providing a powerful starting torque;
• The current frequency of 50 Hz allows the electric motor to be used in standard conditions;
• The weight of the electric motor is 1200 kg, ensuring its stability and reliability.

Usage

The AIR315M4 electric motor can be used in various industries where reliable operation of equipment with high energy consumption is required. It is suitable for use in pump units, ventilation systems, conveyors, and other production facilities. With its technical characteristics and reliability, the AIR315M4 electric motor will ensure the necessary productivity of your production.

Technical Specifications

• Motor Type: General-purpose
• Power, kW: 200
• Voltage, V: 380/660
• Efficiency, %: 95
• Phase: 3
• Number of Poles: 4
• Shaft Diameter, mm: 90
• Speed, RPM: 1500
• Mounting Options: IM1001, IM2001
• Power Factor: 0.89
• Protection Class: IP55
• Climate Design: U2
• Ratio of Max. Torque to Nominal: 2.4
• Ratio of Starting Current to Nominal: 6.4
• Ratio of Starting Torque to Nominal: 2.2
• Current Frequency, Hz: 50
• Weight, kg: 1200
• Country of Origin: Ukraine
