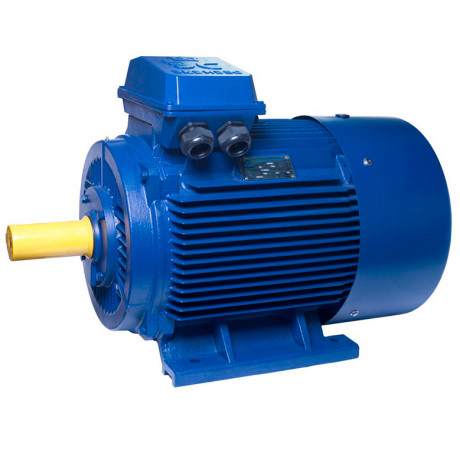

АИР280S6 electric motor 75 KW 1000 rpm ІМ1001
Price
General info
Оn electric motors and pump units.
The warranty on generators is from 1 year.
In any way convenient for you
They provide a comprehensive solution to the energy generation, engineering and driving force needs of your enterprise.
Characteristics
| Electric Motor type | general industrial |
| Power, kW | 75 |
| Phase | 3 |
| Voltage, V | 380/660 |
| Number of poles | 6 |
| Shaft diameter, mm | 80 |
| Rotation speed, rpm | 1000 |
| Mounting version | ІМ1001, ІМ2001 |
| Power factor | 0,86 |
| Climatic version | U2 |
| Protection class | IP55 |
| Ratio max. force torque to nominal | 2,1 |
| Ratio of starting current to rated current | 6,6 |
| Ratio of starting torque to nominal | 2 |
| Current frequency, Hz | 50 |
| Efficiency, % | 93 |
| Weight, Kg | 690 |
| Country of origin | Ukraine |
Description
The AIR280S6 electric motor is a general-purpose type of electric motor that is suitable for a wide range of applications. It has a power of 75 kW and operates at a voltage of 380/660 V. This electric motor is extremely efficient with an efficiency coefficient of 93% and provides high productivity.
Features
- Has 6 poles and provides stable operation
- Mounting execution complies with IM1001 and IM2001 standards
- Has IP55 protection, which guarantees resistance to dust and moisture
- The ratio of starting current to rated current is 6.6, allowing for smooth start-up
- Easy to use and maintain
Extremely powerful and efficient
Usage
The AIR280S6 electric motor with a shaft diameter of 80 mm and a speed of 1000 rpm is ideal for various industrial applications. This electric motor can be used in industrial compressors, mills, pumps, vehicles, and other mechanisms that require a reliable and powerful electric motor.
Technical Specifications
- Power: 75 kW
- Voltage: 380/660 V
- Efficiency: 93%
- Phase: 3
- Number of poles: 6
- Shaft diameter: 80 mm
- Speed: 1000 rpm
- Mounting execution: IM1001, IM2001
- Power factor: 0.86
- Protection class: IP55
- Climatic execution: U2
- Ratio of maximum torque, force to rated: 2.1
- Ratio of starting current to rated: 6.6
- Ratio of starting torque, force to rated: 2
- Current frequency: 50 Hz
- Weight: 690 kg
- Country of origin: Ukraine
Type of electric motor: general-purpose
