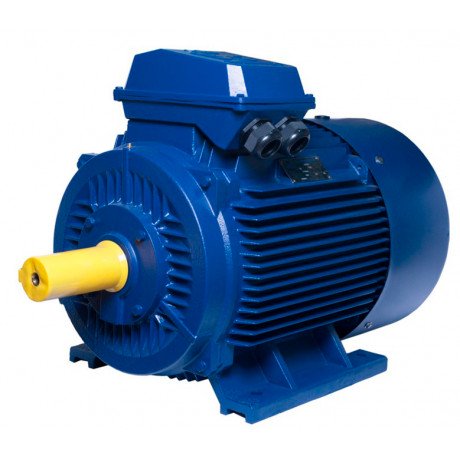

АИР280S2 electric motor 110 KW 3000 rpm ІМ1001
In Stock
Price
107 185.00 ₴
Mounting design:
General info
2 years warranty
Оn electric motors and pump units.
The warranty on generators is from 1 year.
Fast shipping
In any way convenient for you
25 years of experience
They provide a comprehensive solution to the energy generation, engineering and driving force needs of your enterprise.
Characteristics
| Electric Motor type | general industrial |
| Power, kW | 110 |
| Phase | 3 |
| Voltage, V | 380/660 |
| Number of poles | 2 |
| Shaft diameter, mm | 70 |
| Rotation speed, rpm | 3000 |
| Mounting version | ІМ1001, ІМ2001 |
| Power factor | 0,91 |
| Climatic version | U2 |
| Protection class | IP55 |
| Ratio max. force torque to nominal | 2,3 |
| Ratio of starting current to rated current | 6,7 |
| Ratio of starting torque to nominal | 1,9 |
| Current frequency, Hz | 50 |
| Efficiency, % | 93,4 |
| Weight, Kg | 650 |
| Country of origin | Ukraine |
Description
The AIR280S2 electric motor is a general-purpose motor designed for use in various production conditions. It has a power of 110 kW and a speed of 3000 rpm.
Features
- High efficiency coefficient - 93.4%, which reduces energy costs and saves money
- 3 phases and 2 poles for stable operation
- Mounting design IM1001 and IM2001 for easy installation
- High protection against dust and moisture - IP55 protection class
- Climatic design U2, which allows the motor to be used in conditions of variable humidity and temperature
- Low starting current to rated current ratio - 6.7, which provides smooth start without overloads
- High maximum torque to rated torque ratio - 2.3, which provides powerful pulling force
- Frequency of 50 Hz, suitable for most electrical networks
- Low weight - 650 kg, for convenience of transportation and installation
Reliable and efficient motor with high power
Usage
The AIR280S2 electric motor is used in many industries. It is ideal for use in machine building, in food and chemical industries, as well as in the production of equipment for the oil and gas industry.
Technical Specifications
- Power, kW: 110
- Voltage, V: 380/660
- Efficiency, %: 93.4
- Phase: 3
- Number of poles: 2
- Shaft diameter, mm: 70
- Speed, rpm: 3000
- Mounting design: IM1001, IM2001
- Power factor: 0.91
- Protection class: IP55
- Climatic design: U2
- Maximum torque to rated torque ratio: 2.3
- Starting current to rated current ratio: 6.7
- Starting torque to rated torque ratio: 1.9
- Current frequency, Hz: 50
- Weight, kg: 650
- Country of origin: Ukraine
Motor type: general-purpose
