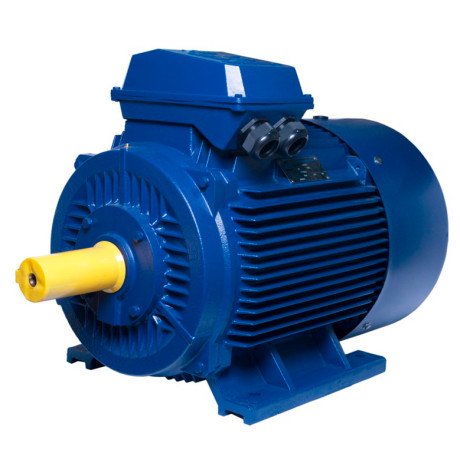

АИР280M4 electric motor 132 KW 1500 rpm ІМ1001
Price
General info
Оn electric motors and pump units.
The warranty on generators is from 1 year.
In any way convenient for you
They provide a comprehensive solution to the energy generation, engineering and driving force needs of your enterprise.
Characteristics
| Electric Motor type | general industrial |
| Power, kW | 132 |
| Phase | 3 |
| Voltage, V | 380/660 |
| Number of poles | 4 |
| Shaft diameter, mm | 80 |
| Rotation speed, rpm | 1500 |
| Mounting version | ІМ1001, ІМ2001 |
| Power factor | 0,88 |
| Climatic version | U2 |
| Protection class | IP55 |
| Ratio max. force torque to nominal | 2,3 |
| Ratio of starting current to rated current | 6,7 |
| Ratio of starting torque to nominal | 2,3 |
| Current frequency, Hz | 50 |
| Efficiency, % | 93,8 |
| Weight, Kg | 700 |
| Country of origin | Ukraine |
Description
The AIR280M4 electric motor is a general-purpose motor with a power of 132 kW and a speed of 1500 rpm. This electric motor is highly efficient and has a power factor of 0.88, which ensures economical energy consumption.
Features
- Reliably protected against moisture and dust with an IP55 protection class, allowing it to be used even in the most challenging conditions.
- High efficiency - 93.8%, ensuring efficient operation and reducing energy losses.
- Has 3 phases and 4 poles, guaranteeing a smooth working process.
- Can be installed in IM1001 or IM2001 mounting execution.
- Has a sturdy shaft diameter of 80 mm, ensuring stable and uninterrupted operation.
- Climate execution U2, allowing the electric motor to be used in various climatic conditions.
It weighs 700 kg, which ensures its stability and reliability in operation.
Usage
The AIR280M4 electric motor is ideal for use in industrial sectors where a powerful and reliable electrical system is required. It can be used in pumping stations, compressors, conveyors, and other heavy industrial machinery.
Technical Specifications
- Power, kW: 132
- Voltage, V: 380/660
- Efficiency, %: 93.8
- Phase: 3
- Number of poles: 4
- Shaft diameter, mm: 80
- Speed, rpm: 1500
- Mounting execution: IM1001, IM2001
- Power factor: 0.88
- Protection class: IP55
- Climate execution: U2
- Max. torque to nominal force ratio: 2.3
- Starting current to nominal current ratio: 6.7
- Starting torque to nominal force ratio: 2.3
- Current frequency, Hz: 50
- Weight, kg: 700
- Country of origin: Ukraine
Motor type: general-purpose
