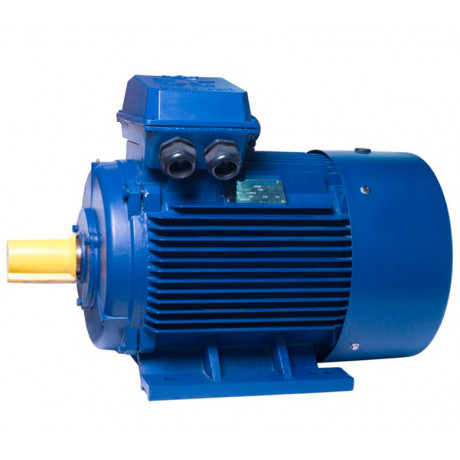

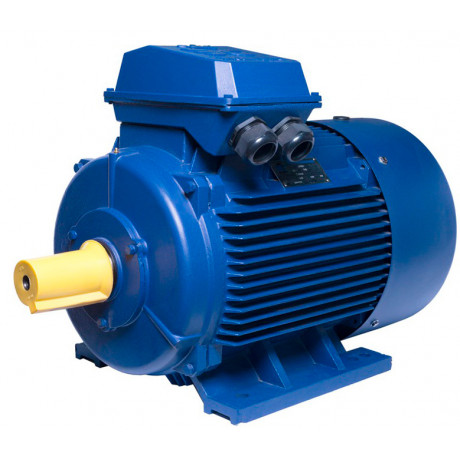

АИР250S2 electric motor 75 KW 3000 rpm IM1081
Price
Delivery by Nova Poshta, SAT or pickup from our warehouse in Boryspil. Shipment within 1–2 business days after payment. Payment: bank transfer by invoice for companies and sole proprietors, or cash on delivery. Details
Call a specialist:
Оn electric motors and pump units.
The warranty on generators is from 1 year.
In any way convenient for you
They provide a comprehensive solution to the energy generation, engineering and driving force needs of your enterprise.
Description
AIR250S2 75 kW 3000 rpm IM1081 electric motor is a general-purpose motor with high power and efficiency. It is designed for use in various industries, including machinery, oil and gas, power generation, and other manufacturing sectors.
Features
- Reliability and durability
- High power transmission efficiency (efficiency) - 92.6%
- 3 phases and 2 poles
- Compact shaft diameter - 65 mm
High power: 75 kW
Usage
This electric motor is ideal for heavy industrial conditions and a wide range of applications. It can be used to drive equipment that requires high power, such as compressors, pumps, lathes, conveyors, rolling mills, winches, etc.
Technical Specifications
- Protection class: IP55
- Climatic design: U2
- Maximum torque to nominal force ratio: 2.6
- Starting current to nominal current ratio: 6.9
- Starting torque to nominal force ratio: 2
- Current frequency: 50 Hz
- Weight: 450 kg
- Country of origin: Ukraine
Mounting design: IM1081, IM2081, IM3081
Characteristics
| Electric Motor type | general industrial |
| Power, kW | 75 |
| Phase | 3 |
| Voltage, V | 380/660 |
| Number of poles | 2 |
| Shaft diameter, mm | 65 |
| Rotation speed, rpm | 3000 |
| Mounting version | ІМ1081, ІМ2081, ІМ3081 |
| Power factor | 0,90 |
| Climatic version | U2 |
| Protection class | IP55 |
| Ratio max. force torque to nominal | 2,6 |
| Ratio of starting current to rated current | 6,9 |
| Ratio of starting torque to nominal | 2 |
| Current frequency, Hz | 50 |
| Efficiency, % | 92,6 |
| Weight, Kg | 450 |
| Country of origin | Ukraine |
