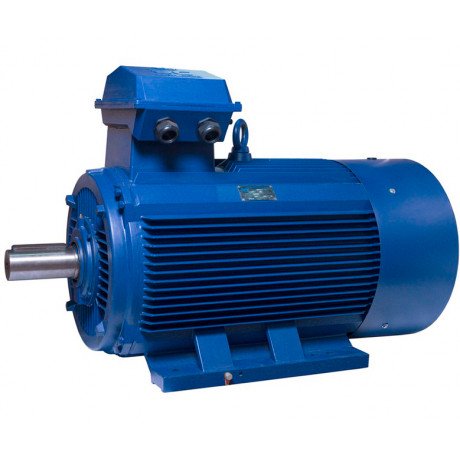

АИР250M2 electric motor 90 KW 3000 rpm IM1081
Price
General info
Оn electric motors and pump units.
The warranty on generators is from 1 year.
In any way convenient for you
They provide a comprehensive solution to the energy generation, engineering and driving force needs of your enterprise.
Characteristics
| Electric Motor type | general industrial |
| Power, kW | 90 |
| Phase | 3 |
| Voltage, V | 380/660 |
| Number of poles | 2 |
| Shaft diameter, mm | 65 |
| Rotation speed, rpm | 3000 |
| Mounting version | ІМ1081, ІМ2081, ІМ3081 |
| Power factor | 0,91 |
| Climatic version | U2 |
| Protection class | IP55 |
| Ratio max. force torque to nominal | 2,5 |
| Ratio of starting current to rated current | 6,4 |
| Ratio of starting torque to nominal | 2 |
| Current frequency, Hz | 50 |
| Efficiency, % | 92,5 |
| Weight, Kg | 530 |
| Country of origin | Ukraine |
Description
AIR250M2 electric motor is a general-purpose type of electric motor with a power of 90 kW. It is perfectly suitable for use in various industrial sectors. This electric motor has a reliable construction and high efficiency, which allows for energy saving.
Features
- Efficiency: 92.5%
- Phase: 3
- Number of poles: 2
- Shaft diameter: 65 mm
- Rotation speed: 3000 rpm
- Mounting design: IM1081, IM2081, IM3081
- Power factor: 0.91
- Protection class: IP55
- Climatic design: U2
- Ratio of maximum torque, force to nominal: 2.5
- Ratio of starting current to nominal: 6.4
- Ratio of starting torque, force to nominal: 2
- Current frequency: 50 Hz
- Weight: 530 kg
- Country of origin: Ukraine
Voltage: 380/660 V
Usage
AIR250M2 electric motor can be used in various industrial sectors that require powerful and reliable equipment. It can be applied in mines, metallurgical and chemical industries, as well as in the oil and gas sector.
Technical Specifications
- Power: 90 kW
- Voltage: 380/660 V
- Efficiency: 92.5%
- Phase: 3
- Number of poles: 2
- Shaft diameter: 65 mm
- Rotation speed: 3000 rpm
- Mounting design: IM1081, IM2081, IM3081
- Power factor: 0.91
- Protection class: IP55
- Climatic design: U2
- Ratio of maximum torque, force to nominal: 2.5
- Ratio of starting current to nominal: 6.4
- Ratio of starting torque, force to nominal: 2
- Current frequency: 50 Hz
- Weight: 530 kg
- Country of origin: Ukraine
Type of electric motor: general-purpose
