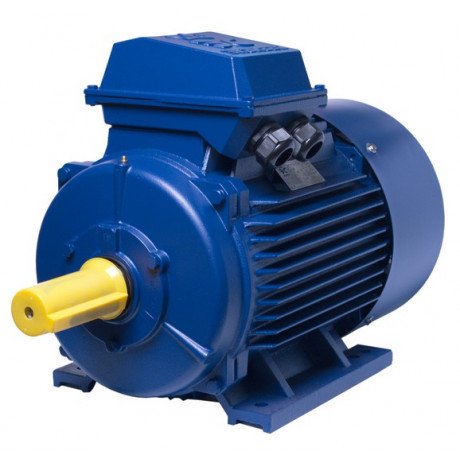

АИР200M6 electric motor 22 KW 1000 rpm ІМ1081
Price
General info
Оn electric motors and pump units.
The warranty on generators is from 1 year.
In any way convenient for you
They provide a comprehensive solution to the energy generation, engineering and driving force needs of your enterprise.
Characteristics
| Electric Motor type | general industrial |
| Power, kW | 22 |
| Phase | 3 |
| Voltage, V | 380/660 |
| Number of poles | 6 |
| Shaft diameter, mm | 60 |
| Rotation speed, rpm | 1000 |
| Mounting version | ІМ1081, ІМ2081, ІМ3081 |
| Power factor | 0,83 |
| Climatic version | U2 |
| Protection class | IP55 |
| Ratio max. force torque to nominal | 2,2 |
| Ratio of starting current to rated current | 6,3 |
| Ratio of starting torque to nominal | 2,1 |
| Current frequency, Hz | 50 |
| Efficiency, % | 89,7 |
| Weight, Kg | 195 |
| Country of origin | Ukraine |
Description:
The AIR200M6 22 kW 1000 rpm IM1081 electric motor is a general-purpose type of electric motor. It has a power of 22 kW, a rated voltage of 380/660 V, and an efficiency coefficient of 89.7%. It provides phase power. The electric motor has 6 poles and a shaft diameter of 60 mm. The rotation speed is 1000 rpm.
Features:
- Protection class: IP55
- Climatic design: U2
- Max. torque to nominal force ratio: 2.2
- Starting current to nominal current ratio: 6.3
- Starting torque to nominal force ratio: 2.1
- Current frequency: 50 Hz
- Weight: 195 kg
- Country of origin: Ukraine
Mounting design: IM1081, IM2081, IM3081
Usage:
The AIR200M6 22 kW 1000 rpm IM1081 electric motor is ideal for use in industrial installations. It can be used in various industries, including manufacturing, metallurgy, oil refining, and many others.
Technical specifications:
- Power, kW: 22
- Voltage, V: 380/660
- Efficiency, %: 89.7
- Phase: 3
- Number of poles: 6
- Shaft diameter, mm: 60
- Rotation speed, rpm: 1000
- Mounting design: IM1081, IM2081, IM3081
- Power factor: 0.83
- Protection class: IP55
- Climatic design: U2
- Max. torque to nominal force ratio: 2.2
- Starting current to nominal current ratio: 6.3
- Starting torque to nominal force ratio: 2.1
- Current frequency, Hz: 50
- Weight, kg: 195
- Country of origin: Ukraine
Type of motor: general-purpose
