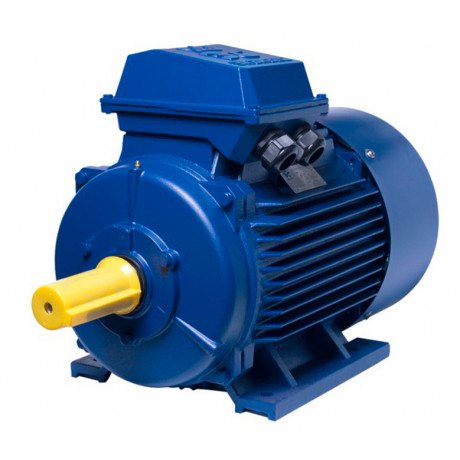

АИР200L8 electric motor 22 KW 750 rpm ІМ1081
Price
General info
Оn electric motors and pump units.
The warranty on generators is from 1 year.
In any way convenient for you
They provide a comprehensive solution to the energy generation, engineering and driving force needs of your enterprise.
Characteristics
| Electric Motor type | general industrial |
| Power, kW | 22 |
| Phase | 3 |
| Voltage, V | 380/660 |
| Number of poles | 8 |
| Shaft diameter, mm | 60 |
| Rotation speed, rpm | 750 |
| Mounting version | ІМ1081, ІМ2081, ІМ3081 |
| Power factor | 0,78 |
| Climatic version | U2 |
| Protection class | IP55 |
| Ratio max. force torque to nominal | 2,1 |
| Ratio of starting current to rated current | 6,2 |
| Ratio of starting torque to nominal | 2 |
| Current frequency, Hz | 50 |
| Efficiency, % | 89,6 |
| Weight, Kg | 225 |
| Country of origin | Ukraine |
Description
The AIR200L8 electric motor is a general-purpose motor with a power of 22 kW. It has 3 phases and 8 poles, which ensures high efficiency and stable operation.
This electric motor has a shaft diameter of 60 mm and a speed of 750 rpm. With a weight of 225 kg, it is a stable and reliable device that will serve for a long time without breakdowns.
Features
- Power factor: 0.78
- Protection class: IP55
- Climatic design: U2
- Ratio of maximum torque to nominal: 2.1
- Ratio of starting current to nominal: 6.2
- Ratio of starting torque to nominal: 2
- Current frequency, Hz: 50
- Country of origin: Ukraine
Mounting design: IM1081, IM2081, IM3081
Usage
The AIR200L8 electric motor can be used for various tasks related to industrial processes. Thanks to its power and stability, it is perfect for use in harsh conditions and will provide reliable and efficient operation.
Technical Specifications
- Power, kW: 22
- Voltage, V: 380/660
- Efficiency, %: 89.6
- Phases: 3
- Number of poles: 8
- Shaft diameter, mm: 60
- Speed, rpm: 750
Motor type: general-purpose
