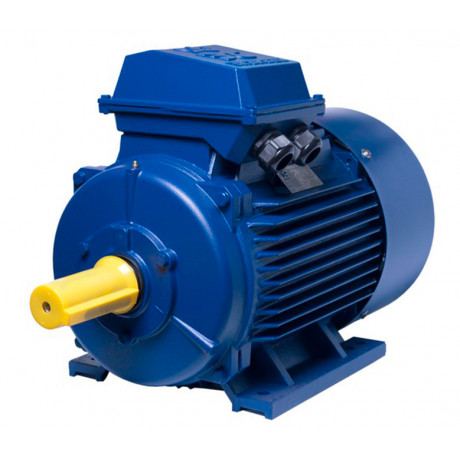

АИР200L2 electric motor 45 KW 3000 rpm IM1081
In Stock
Price
52 000.00 ₴
Mounting design:
General info
2 years warranty
Оn electric motors and pump units.
The warranty on generators is from 1 year.
Fast shipping
In any way convenient for you
25 years of experience
They provide a comprehensive solution to the energy generation, engineering and driving force needs of your enterprise.
Characteristics
| Electric Motor type | general industrial |
| Power, kW | 45 |
| Phase | 3 |
| Voltage, V | 380/660 |
| Number of poles | 2 |
| Shaft diameter, mm | 55 |
| Rotation speed, rpm | 3000 |
| Mounting version | ІМ1081, ІМ2081, ІМ3081 |
| Power factor | 0,88 |
| Climatic version | U2 |
| Protection class | IP55 |
| Ratio max. force torque to nominal | 2,4 |
| Ratio of starting current to rated current | 7,1 |
| Ratio of starting torque to nominal | 2,1 |
| Current frequency, Hz | 50 |
| Efficiency, % | 91,8 |
| Weight, Kg | 255 |
| Country of origin | Ukraine |
Description
AIR200L2 motor is a general-purpose type of motor designed for use in various industrial sectors.
Features
- It operates at a voltage of 380/660 V, ensuring stable operation.
- The efficiency coefficient is 91.8%, which means high energy efficiency.
- It has 3 phases and 2 poles, allowing to achieve the required production level.
- The shaft diameter is 55 mm, providing reliable mechanical stability.
- The rotation speed is 3000 rpm, ensuring the necessary task execution speed.
- The mounting design is available in three variants: IM1081, IM2081, IM3081.
It has a power of 45 kW, making it an efficient solution for various tasks.
Usage
AIR200L2 motor can be used in various industries, such as metal processing, petrochemical industry, food processing, and many others. Its power and reliability allow for efficient performance of various tasks.
Technical Specifications
- Protection class: IP55
- Climatic design: U2
- Max. torque-to-force ratio: 2.4
- Starting current-to-rated current ratio: 7.1
- Starting torque-to-force ratio: 2.1
- Current frequency: 50 Hz
- Weight: 255 kg
- Country of origin: Ukraine
Power factor: 0.88
