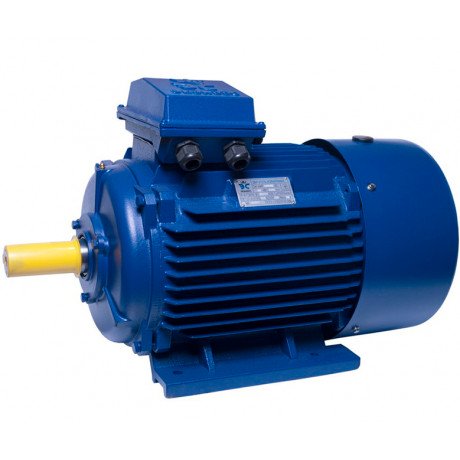

АИР180S2 electric motor 22 KW 3000 rpm ІМ1081
Price
General info
Оn electric motors and pump units.
The warranty on generators is from 1 year.
In any way convenient for you
They provide a comprehensive solution to the energy generation, engineering and driving force needs of your enterprise.
Characteristics
| Electric Motor type | general industrial |
| Power, kW | 22 |
| Phase | 3 |
| Voltage, V | 380/660 |
| Number of poles | 2 |
| Shaft diameter, mm | 48 |
| Rotation speed, rpm | 3000 |
| Mounting version | ІМ1081, ІМ2081, ІМ3081 |
| Power factor | 0,90 |
| Climatic version | U2 |
| Protection class | IP55 |
| Ratio max. force torque to nominal | 2,5 |
| Ratio of starting current to rated current | 7,2 |
| Ratio of starting torque to nominal | 2 |
| Current frequency, Hz | 50 |
| Efficiency, % | 89,8 |
| Weight, Kg | 150 |
| Country of origin | Ukraine |
Description
AIR180S2 electric motor is a general-purpose two-day electric motor with a power of 22 kW. It has a high efficiency coefficient of 89.8% and operates at a voltage of 380/660 V. This electric motor has a phase of 3 and two poles.
Features
- Power factor: 0.90
- Protection class: IP55
- Climatic design: U2
- Ratio of maximum torque, force to nominal: 2.5
- Ratio of starting current to nominal: 7.2
- Ratio of starting torque force to nominal: 2
Mounting design: IM1081, IM2081, IM3081
Usage
AIR180S2 electric motor is suitable for use in various industrial sectors where reliable and efficient operation is required. It can be used in pump systems, conveyor lines, compressors, and other mechanisms. This electric motor provides a high rotational speed of 3000 rpm, which allows for powerful results.
Technical Specifications
- Power, kW: 22
- Voltage, V: 380/660
- Efficiency, %: 89.8
- Phase: 3
- Number of poles: 2
- Shaft diameter, mm: 48
- Rotation speed, rpm: 3000
- Mounting design: IM1081, IM2081, IM3081
- Power factor: 0.90
- Protection class: IP55
- Climatic design: U2
- Ratio of maximum torque, force to nominal: 2.5
- Ratio of starting current to nominal: 7.2
- Ratio of starting torque force to nominal: 2
- Current frequency, Hz: 50
- Weight, kg: 150
- Country of origin: Ukraine
Motor type: general-purpose
