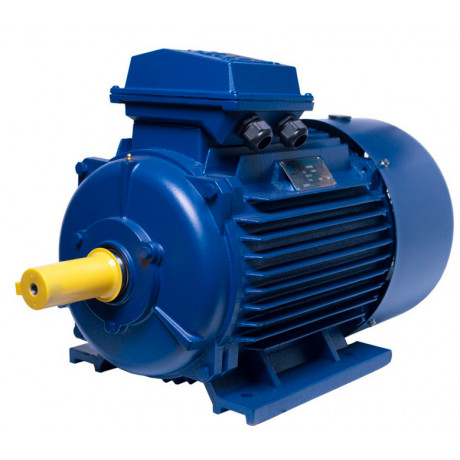

AIR180M8 electric motor 15 kW 750 rpm IM1081
Price
General info
Оn electric motors and pump units.
The warranty on generators is from 1 year.
In any way convenient for you
They provide a comprehensive solution to the energy generation, engineering and driving force needs of your enterprise.
Characteristics
| Electric Motor type | general industrial |
| Power, kW | 15 |
| Phase | 3 |
| Voltage, V | 380/660 |
| Number of poles | 8 |
| Shaft diameter, mm | 55 |
| Rotation speed, rpm | 750 |
| Mounting version | ІМ1081, ІМ2081, ІМ3081 |
| Power factor | 0,76 |
| Climatic version | U2 |
| Protection class | IP55 |
| Ratio max. force torque to nominal | 2.0 |
| Ratio of starting current to rated current | 6.6 |
| Ratio of starting torque to nominal | 2.0 |
| Current frequency, Hz | 50 |
| Efficiency, % | 88.0 |
| Weight, Kg | 172 |
| Country of origin | Ukraine |
AIR180M8 electric motor is a general-purpose type of electric motor that is excellent for various applications. It has a power of 15 kW and operates at a speed of 750 rpm. This electric motor provides efficient operation due to its high efficiency coefficient, which is 88.0%.
Features
- Power: 15 kW
- Voltage: 380/660 V
- Phase: 3
- Number of poles: 8
- Shaft diameter: 55 mm
- Rotation speed: 750 rpm
- Mounting design: IM1081, IM2081, IM3081
Usage
This electric motor can be used in various industrial sectors where a powerful and reliable drive system is required. Thanks to its technical characteristics and features, it will ensure stable operation in the most important applications.
Technical Specifications
- Protection class: IP55
- Climatic design: U2
- Maximum torque to nominal ratio: 2.0
- Starting current to nominal ratio: 6.2
- Starting torque to nominal ratio: 2.0
- Current frequency: 50 Hz
- Weight: 172 kg
- Country of origin: Ukraine
Power factor: 0.76
