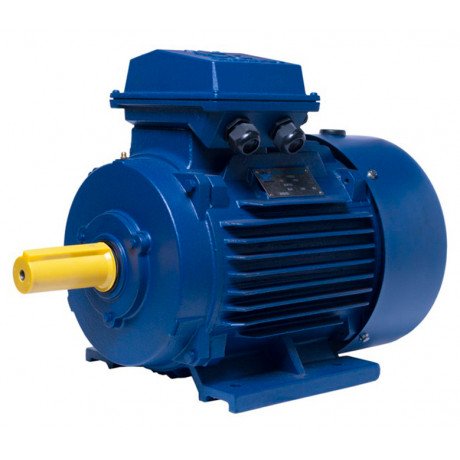

АИР160S6 electric motor 11 KW 1000 rpm ІМ1081
In Stock
Price
23 537.00 ₴
Mounting design:
General info
2 years warranty
Оn electric motors and pump units.
The warranty on generators is from 1 year.
Fast shipping
In any way convenient for you
25 years of experience
They provide a comprehensive solution to the energy generation, engineering and driving force needs of your enterprise.
Characteristics
| Electric Motor type | general industrial |
| Power, kW | 11 |
| Phase | 3 |
| Voltage, V | 380/660 |
| Number of poles | 6 |
| Rotation speed, rpm | 1000 |
| Mounting version | ІМ1081, ІМ2081, ІМ3081 |
| Power factor | 0,78 |
| Climatic version | U2 |
| Protection class | IP55 |
| Ratio max. force torque to nominal | 2,2 |
| Ratio of starting current to rated current | 6,3 |
| Ratio of starting torque to nominal | 2 |
| Current frequency, Hz | 50 |
| Efficiency, % | 86,8 |
| Weight, Kg | 125 |
| Country of origin | Ukraine |
Description
AIR160S6 electric motor is a general-purpose motor with a power of 11 kW and a rotational speed of 1000 rpm. It belongs to the mounting design IM1081, IM2081, IM3081 and has an IP55 protection class.
Features
- Thanks to the voltage of 380/660 V, this motor is suitable for use in different places with different electrical networks.
- The overall efficiency coefficient (OEC) is 86.8%, making it an energy-efficient option for various applications.
- The motor has 3 phases and 6 poles, providing stable operation and high efficiency.
- This motor weighs 125 kg, making it sturdy and reliable.
The motor has a high power of 11 kW, which allows it to work with heavy loads.
Usage
The AIR160S6 motor can be used in various industrial sectors where powerful mechanical force is required. It is ideal for use in pumps, compressors, conveyors, and many other mechanisms.
Technical Specifications
- Power, kW: 11
- Voltage, V: 380/660
- OEC, %: 86.8
- Phase: 3
- Number of poles: 6
- Rotational speed, rpm: 1000
- Mounting design: IM1081, IM2081, IM3081
- Power factor: 0.78
- Protection class: IP55
- Climatic design: U2
- Ratio of maximum torque, force to nominal: 2.2
- Ratio of starting current to nominal: 6.3
- Ratio of starting torque, force to nominal: 2
- Current frequency, Hz: 50
- Weight, kg: 125
- Country of origin: Ukraine
Motor type: general-purpose
