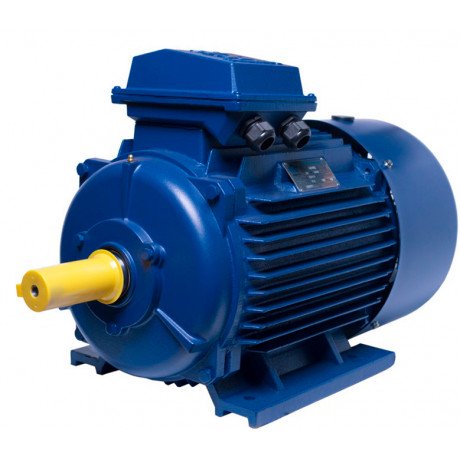

АИР160M4 electric motor 18,5 KW 1500 rpm ІМ1081
Price
General info
Оn electric motors and pump units.
The warranty on generators is from 1 year.
In any way convenient for you
They provide a comprehensive solution to the energy generation, engineering and driving force needs of your enterprise.
Characteristics
| Electric Motor type | general industrial |
| Power, kW | 18,5 |
| Phase | 3 |
| Voltage, V | 380/660 |
| Number of poles | 4 |
| Shaft diameter, mm | 48 |
| Rotation speed, rpm | 1500 |
| Mounting version | ІМ1081, ІМ2081, ІМ3081 |
| Power factor | 0,86 |
| Climatic version | U2 |
| Protection class | IP55 |
| Ratio max. force torque to nominal | 2,3 |
| Ratio of starting current to rated current | 6,8 |
| Ratio of starting torque to nominal | 2,2 |
| Current frequency, Hz | 50 |
| Efficiency, % | 89,8 |
| Weight, Kg | 142 |
| Country of origin | Ukraine |
Description
AIR160M4 is a general-purpose industrial electric motor with a power of 18.5 kW and a rated rotational speed of 1500 rpm. It has a three-phase power supply and consists of 4 poles. This electric motor has a shaft diameter of 48 mm and is used in IM1081, IM2081, and IM3081 mounting designs. The weight of the electric motor is 142 kg.
Features
- Supply voltage 380/660 V
- Efficiency - 89.8%
- Shaft diameter 48 mm
- Rotational frequency 1500 rpm
- Weight 142 kg
- Protection class IP55
- Maximum torque to nominal ratio - 2.3
- Climatic design U2
18.5 kW power electric motor
Usage
AIR160M4 electric motor is ideal for use in general industrial conditions. Thanks to its power and reliability, it can be used in various industrial sectors. This electric motor can be used for drives of pumps, ventilation systems, conveyor belts, and many other industrial installations.
Technical Specifications
- Power, kW: 18.5
- Voltage, V: 380/660
- Efficiency, %: 89.8
- Phase: 3
- Number of poles: 4
- Shaft diameter, mm: 48
- Rotational frequency, rpm: 1500
- Mounting design: IM1081, IM2081, IM3081
- Power factor: 0.86
- Protection class: IP55
- Climatic design: U2
- Maximum torque to nominal ratio: 2.3
- Starting current to nominal ratio: 6.8
- Starting torque to nominal ratio: 2.2
- Current frequency, Hz: 50
- Weight, kg: 142
- Country of origin: Ukraine
Electric motor type: general-purpose
