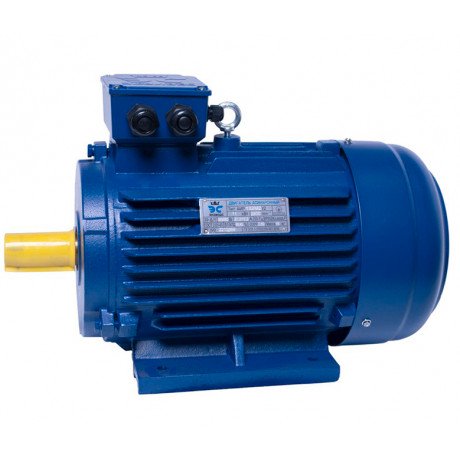

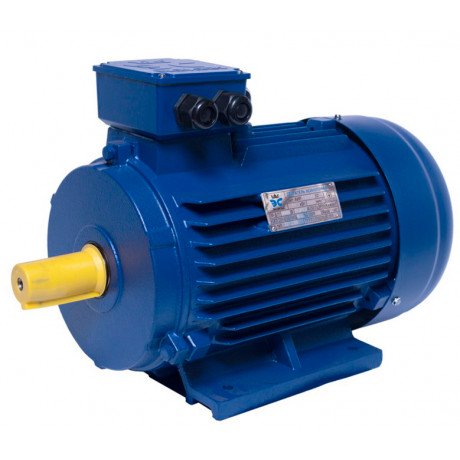

АИР132S8 electric motor 4 KW 750 rpm IM1081
Price
General info
Оn electric motors and pump units.
The warranty on generators is from 1 year.
In any way convenient for you
They provide a comprehensive solution to the energy generation, engineering and driving force needs of your enterprise.
Characteristics
| Electric Motor type | general industrial |
| Power, kW | 4 |
| Phase | 3 |
| Voltage, V | 380/660 |
| Number of poles | 8 |
| Shaft diameter, mm | ? |
| Rotation speed, rpm | 750 |
| Mounting version | ІМ1081, ІМ2081, ІМ3081 |
| Power factor | 0,73 |
| Climatic version | U2 |
| Protection class | IP55 |
| Ratio max. force torque to nominal | 2,1 |
| Ratio of starting current to rated current | 5,6 |
| Ratio of starting torque to nominal | 2,1 |
| Current frequency, Hz | 50 |
| Efficiency, % | 81,9 |
| Weight, Kg | 70 |
| Country of origin | Ukraine |
Description
The AIR132S8 electric motor is a general-purpose type of motor that meets the needs of various industrial sectors. With a power of 4 kW and a speed of 750 rpm, it ensures efficient operation in different conditions.
Features
- The motor has a 3-phase design, which ensures stable operation.
- The IP55 protection class guarantees protection against dust and moisture.
- The mounting design is available in three variations: IM1081, IM2081, IM3081.
The motor efficiency is 81.9%, which allows for efficient use of electricity.
Usage
The AIR132S8 electric motor can be used for various tasks where a power of 4 kW and a speed of 750 rpm are required. It is suitable for use in the industrial sector, construction, agriculture, and other industries.
Technical Specifications
- Power, kW: 4
- Voltage, V: 380/660
- Efficiency, %: 81.9
- Phase: 3
- Number of poles: 8
- Shaft diameter, mm: ?
- Speed, rpm: 750
- Mounting design: IM1081, IM2081, IM3081
- Power factor: 0.73
- Protection class: IP55
- Climatic design: U2
- Ratio of maximum torque, force to nominal: 2.1
- Ratio of starting current to nominal: 5.6
- Ratio of starting torque, force to nominal: 2.1
- Current frequency, Hz: 50
- Weight, kg: 70
- Country of origin: Ukraine
Motor type: general-purpose
