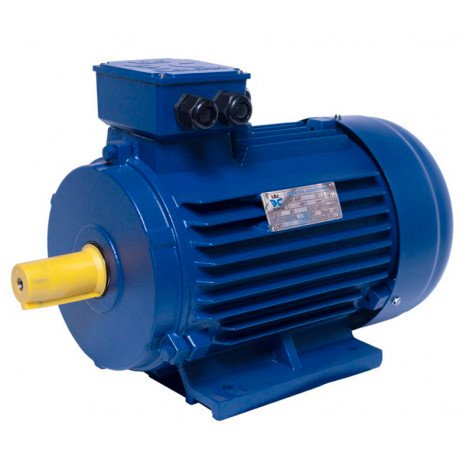

АИР132S6 electric motor 5,5 KW 1000 rpm IM1081
Price
General info
Оn electric motors and pump units.
The warranty on generators is from 1 year.
In any way convenient for you
They provide a comprehensive solution to the energy generation, engineering and driving force needs of your enterprise.
Characteristics
| Electric Motor type | general industrial |
| Power, kW | 5,5 |
| Phase | 3 |
| Voltage, V | 380/660 |
| Number of poles | 6 |
| Shaft diameter, mm | 38 |
| Rotation speed, rpm | 1000 |
| Mounting version | ІМ1081, ІМ2081, ІМ3081 |
| Power factor | 0,77 |
| Climatic version | U2 |
| Protection class | IP55 |
| Ratio max. force torque to nominal | 2,1 |
| Ratio of starting current to rated current | 6,3 |
| Ratio of starting torque to nominal | 2,1 |
| Current frequency, Hz | 50 |
| Efficiency, % | 82,8 |
| Weight, Kg | 56 |
| Country of origin | Ukraine |
Description
AIR132S6 electric motor is a general-purpose type of electric motor that operates with a power of 5.5 kW and a rotational frequency of 1000 rpm. It has 6 poles and a shaft diameter of 38 mm. Thanks to its technical characteristics, it is excellent for various industrial applications.
Features
- AC voltage: 380/660 V
- High energy efficiency: Efficiency 82.8%
- Phase: 3
- Number of poles: 6
- Shock and vibration resistant: IP55 protection
- Weight: 56 kg
- Climatic execution: U2
High power: 5.5 kW
Usage
This electric motor is designed for use in various production sectors where high power and reliability are required. It is perfect for use in mechanical engineering, coal industry, oil and gas sectors, as well as in other heavy-duty working conditions.
Technical Specifications
- Power: 5.5 kW
- Voltage: 380/660 V
- Efficiency: 82.8%
- Phase: 3
- Number of poles: 6
- Shaft diameter: 38 mm
- Rotational frequency: 1000 rpm
- Mounting execution: IM1081, IM2081, IM3081
- Power factor: 0.77
- Protection class: IP55
- Climatic execution: U2
- Ratio of maximum torque, force to nominal: 2.1
- Ratio of starting current to nominal: 6.3
- Ratio of starting torque, force to nominal: 2.1
- Current frequency: 50 Hz
- Weight: 56 kg
- Country of origin: Ukraine
Type of electric motor: general-purpose
