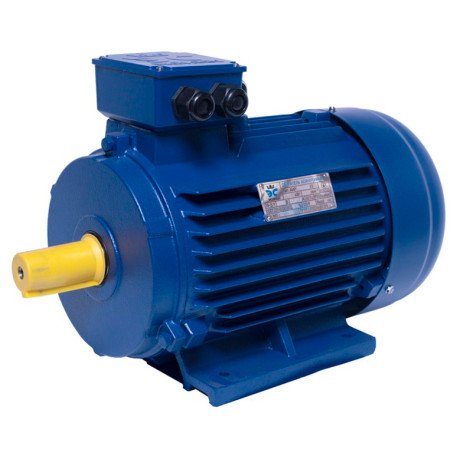

АИР132S4 electric motor 7,5 KW 1500 rpm IM1081
Price
General info
Оn electric motors and pump units.
The warranty on generators is from 1 year.
In any way convenient for you
They provide a comprehensive solution to the energy generation, engineering and driving force needs of your enterprise.
Characteristics
| Electric Motor type | general industrial |
| Power, kW | 7,5 |
| Phase | 3 |
| Voltage, V | 380/660 |
| Number of poles | 4 |
| Shaft diameter, mm | 38 |
| Rotation speed, rpm | 1500 |
| Mounting version | IM1081 |
| Power factor | 0,84 |
| Climatic version | U2 |
| Protection class | IP55 |
| Ratio max. force torque to nominal | 2,3 |
| Ratio of starting current to rated current | 6,7 |
| Ratio of starting torque to nominal | 2,2 |
| Current frequency, Hz | 50 |
| Efficiency, % | 86 |
| Weight, Kg | 52 |
| Country of origin | Ukraine |
Description
The 7.5/1500 AIR132S4 IM1081 electric motor is a general-purpose motor that provides high power and reliable operation. It is characterized by high efficiency, which allows for energy savings. This electric motor has several features that make it unmatched in the industrial sector.
Features
- Voltage - 380/660 V
- Phase - 3
- Shaft diameter - 38 mm
- Speed - 1500 rpm
- Power factor - 0.84
- Protection class - IP55
- Climatic design - U2
- Weight - 52 kg
- Country of origin - Ukraine
High power - 7.5 kW
Usage
The 7.5/1500 AIR132S4 IM1081 electric motor is perfect for use in various industrial sectors where reliable and efficient equipment operation is required. It can be used in compressors, pumps, ventilation systems, and other devices that require a powerful electric motor for their operation.
Technical Specifications
- Power, kW: 7.5
- Voltage, V: 380/660
- Efficiency, %: 86
- Phase: 3
- Number of poles: 4
- Shaft diameter, mm: 38
- Speed, rpm: 1500
- Mounting design: IM1081
- Power factor: 0.84
- Protection class: IP55
- Climatic design: U2
- Max. torque to nominal force ratio: 2.3
- Starting current to nominal current ratio: 6.7
- Starting torque to nominal force ratio: 2.2
- Current frequency, Hz: 50
- Weight, kg: 52
- Country of origin: Ukraine
Motor type: general-purpose
