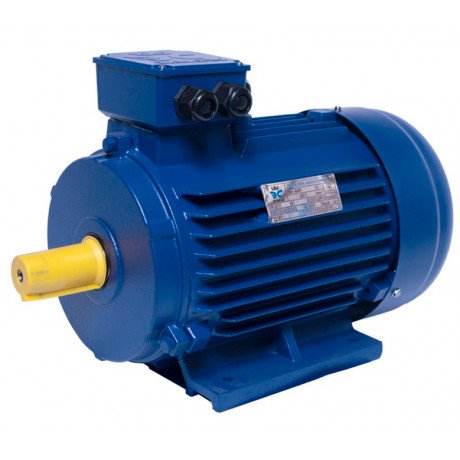

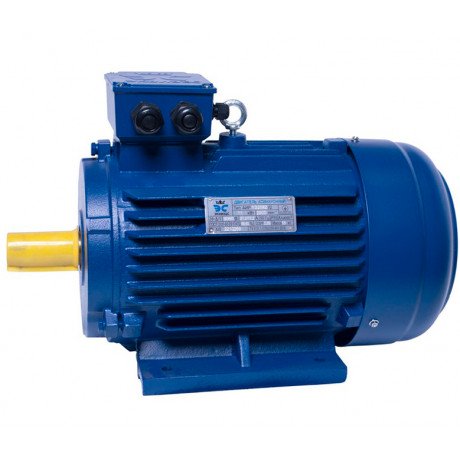

АИР132M8 electric motor 5,5 KW 750 rpm IM1081
Price
General info
Оn electric motors and pump units.
The warranty on generators is from 1 year.
In any way convenient for you
They provide a comprehensive solution to the energy generation, engineering and driving force needs of your enterprise.
Characteristics
| Electric Motor type | general industrial |
| Power, kW | 5,5 |
| Phase | 3 |
| Voltage, V | 380/660 |
| Number of poles | 8 |
| Shaft diameter, mm | 38 |
| Rotation speed, rpm | 750 |
| Mounting version | ІМ1081, ІМ2081, ІМ3081 |
| Power factor | 0,74 |
| Climatic version | U2 |
| Protection class | IP55 |
| Ratio max. force torque to nominal | 2,1 |
| Ratio of starting current to rated current | 5,6 |
| Ratio of starting torque to nominal | 2,1 |
| Current frequency, Hz | 50 |
| Efficiency, % | 80,9 |
| Weight, Kg | 86 |
| Country of origin | Ukraine |
Description
AIR132M8 electric motor is a general-purpose motor with a power of 5.5 kW and a speed of 750 rpm. It is characterized by its reliability and high productivity. Thanks to its high efficiency coefficient, it provides energy savings and improves the productivity of your equipment.
Features
- Voltage: 380/660 V
- Efficiency: 80.9%
- Phase: 3
- Number of poles: 8
- Shaft diameter: 38 mm
- Speed: 750 rpm
- Mounting design: IM1081, IM2081, IM3081
Power: 5.5 kW
Usage
This electric motor is ideal for use in various industrial applications. It can be used for driving conveyors, pumping stations, ventilation systems, metal processing machines, and many other industrial installations. Thanks to its reliability and durability, this electric motor will ensure uninterrupted operation of your equipment.
Technical Specifications
- Protection class: IP55
- Climatic design: U2
- Ratio of maximum torque, force to nominal: 2.1
- Ratio of starting current to nominal: 5.6
- Ratio of starting torque, force to nominal: 2.1
- Current frequency: 50 Hz
- Weight: 86 kg
- Country of origin: Ukraine
Power factor: 0.74
