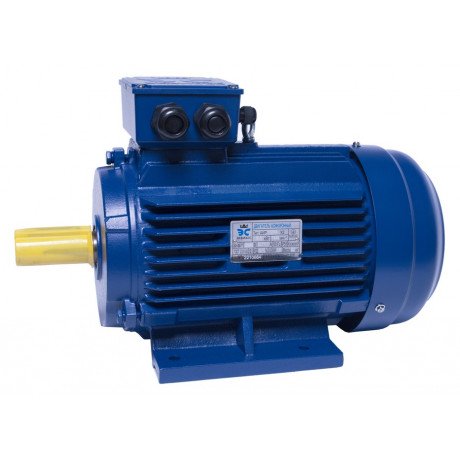

АИР112M4 electric motor 5,5 KW 1500 rpm IM1081
Price
General info
Оn electric motors and pump units.
The warranty on generators is from 1 year.
In any way convenient for you
They provide a comprehensive solution to the energy generation, engineering and driving force needs of your enterprise.
Characteristics
| Electric Motor type | general industrial |
| Power, kW | 5,5 |
| Phase | 3 |
| Voltage, V | 220/380 |
| Number of poles | 4 |
| Shaft diameter, mm | 32 |
| Rotation speed, rpm | 1500 |
| Mounting version | ІМ1081, ІМ2081, ІМ3081 |
| Power factor | 0,83 |
| Climatic version | U2 |
| Protection class | IP55 |
| Ratio max. force torque to nominal | 2,3 |
| Ratio of starting current to rated current | 6,6 |
| Ratio of starting torque to nominal | 2,3 |
| Current frequency, Hz | 50 |
| Efficiency, % | 84,1 |
| Weight, Kg | 45 |
| Country of origin | Ukraine |
Description
The AІR112M4 electric motor is a general industrial type with a maximum power of 5.5 kW and an operating voltage of 220/380 V. It has a high efficiency coefficient of 84.1%. This electric motor has 4 poles and a shaft diameter of 32 mm.
Features
- Power factor: 0.83
- Protection class: IP55
- Climatic design: У2
- Maximum torque to nominal ratio: 2.3
- Starting current to nominal ratio: 6.6
- Starting torque force to nominal ratio: 2.3
- Current frequency: 50 Hz
- Weight: 45 kg
- Country of origin: Ukraine
Mounting design: ІМ1081, ІМ2081, ІМ3081
Usage
The AІR112M4 electric motor is ideal for use in various industrial sectors. It can be used in machinery, pumps, conveyors, and other devices that require reliable and stable power supply. Its wide capabilities and high productivity ensure efficient equipment operation and stable production process.
Technical Specifications
- Power, kW: 5.5
- Voltage, V: 220/380
- Efficiency, %: 84.1
- Phase: 3
- Number of poles: 4
- Shaft diameter, mm: 32
- Rotation speed, rpm: 1500
Motor type: general industrial
