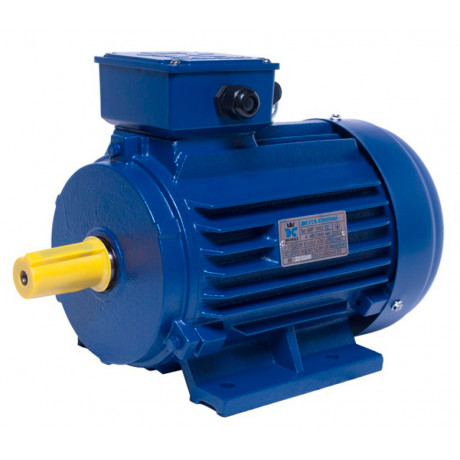

АИР100S4 electric motor 3 kW 1500 rpm ІМ1081
Price
General info
Оn electric motors and pump units.
The warranty on generators is from 1 year.
In any way convenient for you
They provide a comprehensive solution to the energy generation, engineering and driving force needs of your enterprise.
Characteristics
| Electric Motor type | general industrial |
| Power, kW | 3 |
| Phase | 3 |
| Voltage, V | 220/380 |
| Number of poles | 4 |
| Shaft diameter, mm | 28 |
| Rotation speed, rpm | 1500 |
| Mounting version | ІМ1081, ІМ2081, ІМ3081 |
| Power factor | 0,82 |
| Climatic version | U2 |
| Protection class | IP55 |
| Ratio max. force torque to nominal | 2,3 |
| Ratio of starting current to rated current | 7 |
| Ratio of starting torque to nominal | 2,3 |
| Current frequency, Hz | 50 |
| Efficiency, % | 81,4 |
| Weight, Kg | 21 |
| Country of origin | Ukraine |
Description
AIR100S4 is a general-purpose electric motor with a power of 3 kW and a speed of 1500 rpm. It is made in Ukraine from high-quality materials and meets all standards and requirements.
Features
- Reliable protection: IP55 protection class provides protection against dust and moisture, increasing its durability and reliability.
- High torque: the ratio of maximum torque to nominal force is 2.3, making it ideal for tasks with heavy loads.
- Efficient energy utilization: the power factor is 0.82, helping to reduce electricity costs.
High efficiency: the efficiency coefficient is 81.4%, making this electric motor economically advantageous to operate.
Usage
AIR100S4 can be used in various industrial sectors where reliable operation of a high-power electric motor is required. It is suitable for use in the oil, chemical, metallurgical, and other industries. It can also be used for drives of various machines and mechanisms.
Technical Specifications
- Power, kW: 3
- Voltage, V: 220/380
- Phase: 3
- Number of poles: 4
- Shaft diameter, mm: 28
- Speed, rpm: 1500
- Mounting design: IM1081, IM2081, IM3081
- Power factor: 0.82
- Protection class: IP55
- Climatic design: U2
- Ratio of maximum torque to nominal force: 2.3
- Ratio of starting current to nominal: 7
- Ratio of starting torque to nominal force: 2.3
- Current frequency, Hz: 50
- Weight, kg: 21
- Country of origin: Ukraine
Motor type: general-purpose
