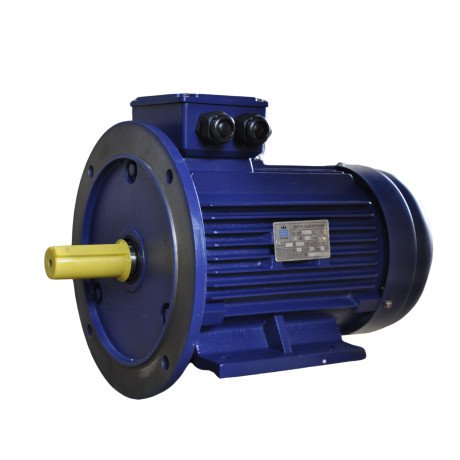

АИР100L2 Electric motor 5,5 KW 3000 rpm IM1081
Price
General info
Оn electric motors and pump units.
The warranty on generators is from 1 year.
In any way convenient for you
They provide a comprehensive solution to the energy generation, engineering and driving force needs of your enterprise.
Characteristics
| Electric Motor type | general industrial |
| Power, kW | 5,5 |
| Phase | 3 |
| Voltage, V | 220/380 |
| Number of poles | 2 |
| Shaft diameter, mm | 28 |
| Rotation speed, rpm | 3000 |
| Mounting version | ІМ1081, ІМ2081, ІМ3081 |
| Power factor | 0,88 |
| Climatic version | U2 |
| Protection class | IP55 |
| Ratio max. force torque to nominal | 2,3 |
| Ratio of starting current to rated current | 7,5 |
| Ratio of starting torque to nominal | 2,2 |
| Current frequency, Hz | 50 |
| Efficiency, % | 84,8 |
| Weight, Kg | 28 |
| Country of origin | Ukraine |
Description
The AІР100L2 electric motor is a general-purpose type of motor with a power factor of 0.88. It operates at a voltage of 220/380 V and has a power of 5.5 kW. This electric motor has an efficiency of 84.8% and a phase of 3. It also has 2 poles and a shaft diameter of 28 mm. The rotation speed is 3000 rpm.
Features
- Protection class: IP55
- Climatic design: У2
- Maximum torque to nominal force ratio: 2.3
- Starting current to nominal current ratio: 7.5
- Starting torque to nominal force ratio: 2.2
- Current frequency: 50 Hz
- Weight: 28 kg
- Country of origin: Ukraine
Mounting design: ІМ1081, ІМ2081, ІМ3081
Usage
The AІР100L2 electric motor is ideal for use in various industrial installations. Thanks to its technical characteristics and reliability, it can be used in a wide range of applications, including rolling mills, pumping stations, transportation systems, and other industrial equipment.
Technical Specifications
- Power, kW: 5.5
- Voltage, V: 220/380
- Efficiency, %: 84.8
- Phase: 3
- Number of poles: 2
- Shaft diameter, mm: 28
- Rotation speed, rpm: 3000
- Mounting design: ІМ1081, ІМ2081, ІМ3081
- Power factor: 0.88
- Protection class: IP55
- Climatic design: У2
- Maximum torque to nominal force ratio: 2.3
- Starting current to nominal current ratio: 7.5
- Starting torque to nominal force ratio: 2.2
- Current frequency, Hz: 50
- Weight, kg: 28
- Country of origin: Ukraine
Motor type: general-purpose
