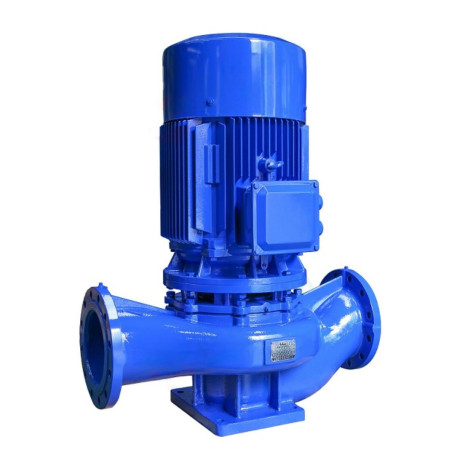

Console pump unit PKV80-160
Оn electric motors and pump units.
The warranty on generators is from 1 year.
In any way convenient for you
They provide a comprehensive solution to the energy generation, engineering and driving force needs of your enterprise.
Characteristics
| Type of pump unit | Console linear |
| Appointment | Designed for pumping clean (cold/hot water) in water supply systems of housing and communal services, municipal water utilities, in process water supply systems, for ensuring technological simplifications of industrial enterprises, including petroleum refining and metallurgy galusi. |
| Voltage, V | 380 |
| Frequency, Hz | 50 |
| Max Head, m | 40 |
| Max Productivity, m3/h | 70 |
| Engine power, kW | 7,5 |
| Rotation speed, RPM | 2960 |
| Diameter of the impeller, mm | 160 |
| Pipe diameter, mm | DNs 80 DNd 80 |
| Case material | stainless steel |
| Impeller material | stainless steel |
| Weight, Kg | 95 |
Get Maximum Efficiency with the PKV Vertical Centrifugal Pump!
Introducing the PKV series of vertical centrifugal pumps – the ideal solution for reliable and efficient pumping of water and similar liquids. Designed for long-term operation, these pumps ensure stable performance in the most diverse conditions.
Your Tasks, Our Solutions:
For Cold Water (up to 80 °C):
Water Supply and Drainage: Ensure uninterrupted water supply in cities, enterprises, and residential and communal facilities.
Pressure Boosting: Ideal for water supply systems in high-rise buildings and efficient garden irrigation.
Firefighting: Be confident in the reliability of your fire extinguishing system.
Circulation: An optimal solution for heating systems and auxiliary equipment.
For Hot Water (PKV, up to 100 °C):
Specifically designed for hot water applications, these pumps will be indispensable in:
Heating Systems: Provide comfortable heat in residential buildings, enterprises, and institutions.
Industrial Processes: Pressure boosting and hot water circulation for power plants, metallurgy, chemical, textile, woodworking, paper industries, and other sectors using industrial boilers.
Why Choose PKV?
Durable Construction: The pump features a cantilever inline type design made of stainless steel, guaranteeing a long service life and high reliability.
High Performance: With a maximum head of 40 m and a capacity of 70 m³/h, the PKV can handle any task.
Energy Efficiency: The optimal motor power of 7.5 kW ensures efficient operation at 2960 rpm.
Key Specifications:
Voltage: 380 V
Frequency: 50 Hz
Impeller Diameter: 160 mm
Nozzle Size: DNs 80 / DNd 80
Weight: 95 kg
Our compact in-line pump units are a solution that allows you to save up to 50% on costs. Thanks to their design, they are easily integrated into existing systems without requiring significant changes. This makes it possible to reduce expenses on piping and shut-off valves, making their installation quick and cost-effective. Choose efficiency and reliability for your project.
Choose the PKV pump – choose reliability and efficiency for your facility!
