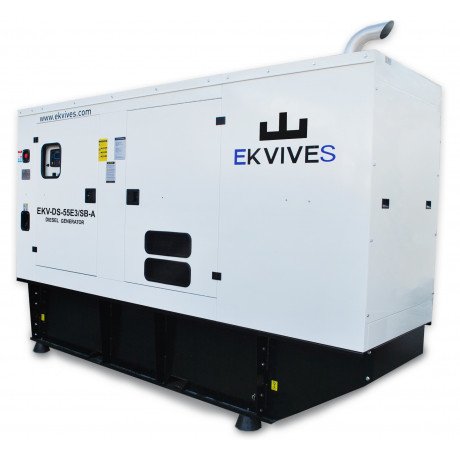

Generator diesel 40 kW 50 kVA EKV-DS-55E3/SB-А
Price
General info
Оn electric motors and pump units.
The warranty on generators is from 1 year.
In any way convenient for you
They provide a comprehensive solution to the energy generation, engineering and driving force needs of your enterprise.
Characteristics
| Type | stationary diesel closed |
| Voltage, V | 400/230 |
| Fuel | diesel |
| Starting system | electric start |
| Nominal power, kVA/kW | 50/40 |
| Max. power, kVA/kW | 55/44 |
| Spin, rpm | 1500 |
| Fuel consumption 50%, l/h | 6 |
| Fuel consumption 75%, l/h | 8,9 |
| Power factor | 0,8 |
| Engine type | Baudouin 4-cylinder, with water cooling |
| Fuel consumption 100%, l/h | 11,9 |
| Model | 4M06G55/5 |
| Fuel tank volume, l | 225 |
| Oil volume, l | 9,2 |
| Dimensions, mm | 1800x950x1450 |
| Weight, kg | 860 |
Description
The diesel generator 40 kW 50 kVA EKV-DS-55E3/SB-A is a stationary diesel generator that runs on diesel fuel. It is equipped with a powerful Baudouin engine with water cooling, which ensures reliable operation for a long time. Thanks to the electric start system, the startup is very convenient to use.
Features
- Voltage: 400/230 V
- Fuel: diesel
- Startup system: electric start
- Power factor: 0.8
- Engine type: Baudouin 4-cylinder, water-cooled
- Engine model: 4M06G55/5
- Fuel tank capacity: 225 L
- Oil capacity: 9.2 L
- Dimensions: 1800x950x1450 cm
- Weight: 860 kg
- Speed: 1500 rpm
- Fuel consumption at 50% load: 6 L/h
- Fuel consumption at 75% load: 8.9 L/h
- Fuel consumption at 100% load: 11.9 L/h
- Rated power: 50 kVA / 40 kW
- Maximum power: 55 kVA / 44 kW
Type: stationary diesel closed
Usage
The diesel generator 40 kW 50 kVA EKV-DS-55E3/SB-A has a wide range of applications. It can be used in industrial complexes, construction sites, and other places where an independent power source is needed. With its help, a continuous power supply can be provided, even in the absence of a main power grid connection. The generator operates reliably and efficiently, and its compact size allows for convenient placement on equipped sites.
Technical Specifications
- Voltage: 400/230 V
- Fuel: diesel
- Startup system: electric start
- Power factor: 0.8
- Engine type: Baudouin 4-cylinder, water-cooled
- Engine model: 4M06G55/5
- Fuel tank capacity: 225 L
- Oil capacity: 9.2 L
- Dimensions: 1800x950x1450 cm
- Weight: 860 kg
- Speed: 1500 rpm
- Fuel consumption at 50% load: 6 L/h
- Fuel consumption at 75% load: 8.9 L/h
- Fuel consumption at 100% load: 11.9 L/h
- Rated power: 50 kVA / 40 kW
- Maximum power: 55 kVA / 44 kW
Type: stationary diesel closed
